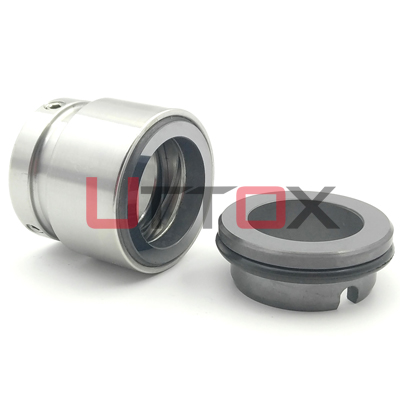

Type: UT-HJ92N

——————————————————————————————————————————————————————————————————-

Material Code

Component Seals

Equivalent to:

O-ring Mounted Mechanical Seals

Rubber Bellows Mechanical Seals

● Eagle Burgmann HJ92N

Wedge Ring Mechanical Seals

_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

PTFE Bellows Mechanical Seals

Metal Bellows Seals

Catridge
Mechanical Seals

Operating Limits:

Flygt Pump Seals

● Temperature: -20℃ - +220℃

● Pressure：≤ 25bar

● Speed: ≤ 20m/s

● Shaft Size: 18mm - 100mm

* Flygt Pumps Models List

Common Pumps Seals

Grundfos / CNP

Xylem

APV

_ _ _ _ _ __ _ _ _ __ _ _ _ _ _ _ _ _ _ _ _ _ _ __ _ _ _ _ _ _ _ _ _ _ _ _

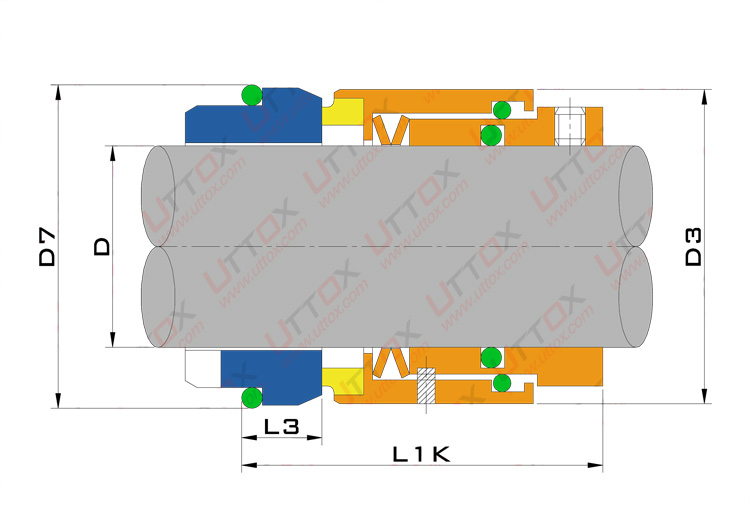

Assembly Dwg:

__ _ _ _ __ _ _ _ __ _ _ __ _ _ _ __ __ _ _ _ _ _ _ __ _ _ _ _ _ _

Lowara

Materials:

Seal Parts & Related Products

Springs

● Seal Rings: A,B,Q1/12,Q2/22,

U1/12,U2/22

● Elastomer: E,K,N,P,S,V,X

● Metal Part: F,G,M5,S6

RBSIC Seal Rings

SSIC Seal Rings

Tungsten Carbide Seal Rings

Carbon Seal Rings

O-rings

__ _ _ _ __ _ _ _ __ _ _ __ _ _ _ __ __ _ _ _ _ _ _ __ _ _ _ _ _ _

Encapsulated O-rings / FEP O-rings

Kalrez® O-rings

Chemraz® O-rings

Dimension (mm):

_ _ _ _ _ _ _ __ _ _ _ _ _ _ _ _ _ __ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

D	D3	D7	L8	L1K	L3
18	32	33	15	37.5	7
20	34	35	15	37.5	7
22	36	37	15	37.5	7
24	38	39	15	40	7
25	39	40	15	40	7
28	42	43	15	42.5	7
30	44	45	15	42.5	7
32	47	48	15	42.5	7
33	47	48	15	42.5	7
35	49	50	15	42.5	7
38	54	56	16	45	8
40	56	58	16	45	8
43	59	61	16	45	8
45	61	63	16	45	8
48	64	66	16	45	8
50	66	70	17	47.5	9.5
53	69	73	17	47.5	9.5
55	71	75	17	47.5	9.5
58	78	78	18	52.5	10.5
60	80	80	18	52.5	10.5
63	83	83	18	52.5	10.5
65	85	85	18	52.5	10.5
68	88	90	18,5	52.5	11
70	90	92	19	60	11.5
75	99	97	19	60	11.5
80	104	105	19	60	11.5
85	109	110	19	60	11.5
90	114	115	20.5	65	13
95	119	120	20.5	65	13
100	124	125	20.5	65	13
