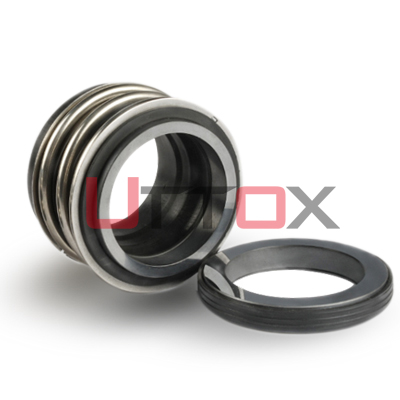

Type: UT-MG1/12/13

——————————————————————————————————————————————————————————————————-

Material Code

Component Seals

O-ring Mounted Mechanical Seals

Operating Limits:

Rubber Bellows Mechanical Seals

Wedge Ring Mechanical Seals

● Temperature:-20℃ - +200℃

● Pressure：≤ 16bar

● Speed: ≤ 10m/s

● Shaft size: 12mm-120mm

PTFE Bellows Mechanical Seals

Metal Bellows Seals

Catridge
Mechanical Seals

Flygt Pump Seals

* Flygt Pumps Models List

Common Pumps Seals

_ _ _ _ _ __ _ _ _ __ _ _ _ _ _ _ _ _ _ _ _ _ _ __ _ _ _ _ _ _ _ _ _ _ _ _

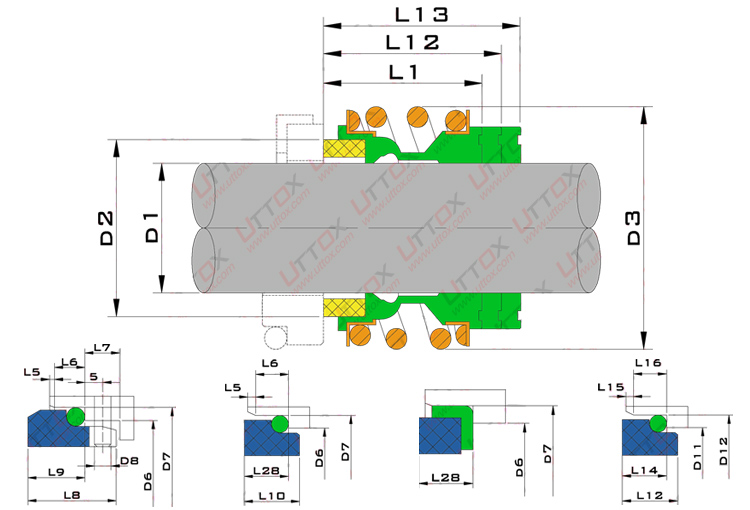

Assembly Dwg:

__ _ _ _ __ _ _ _ __ _ _ __ _ _ _ __ __ _ _ __ _ _ _ _ _ _

Seal Parts & Related Products

Materials:

Springs

RBSIC Seal Rings

● Seal Rings: A,B,Q1/12,Q2/22,

U1/12,U2/22

● Elastomer: E,K,N,P,S,V,X

● Metal Part: F,G

SSIC Seal Rings

Tungsten Carbide Seal Rings

Carbon Seal Rings

O-rings

Encapsulated O-rings / FEP O-rings

__ _ _ _ __ _ _ _ __ _ _ __ _ _ _ __ __ _ _ __ _ _ _ _ _ _

Kalrez® O-rings

Chemraz® O-rings

_ _ _ _ _ _ _ __ _ _ _ _ _ _ _ _ _ __ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

Dimension (mm):

D1	D2	D6	D7	D3	L1	L12	L13	L5	L6	L7	L8	L9	L10	L12	L14	L15	L16	L28	D11	D12	D8
10	15.7	17	21	22.5	14.5	25.9	33.4	1.5	4	8.5	17.5	10	7.5	7.5	6.6	1.2	3.8	6.6	15.5	19.2	3
12	17.7	19	23	25	15	25.9	33.4	1.5	4	8.5	17.5	10	7.5	6.5	5.6	1.2	3.8	6.6	17.5	21.6	3
14	19.7	21	25	28.5	17	28.4	33.4	1.5	4	8.5	17.5	10	7.5	6.5	5.6	1.2	3.8	6.6	20.5	24.6	3
15	20.8	–	–	28.5	17	28.4	33.4	–	-	–	–	–	–	7.5	6.6	1.2	3.8	–	20.5	24.6	-
16	21	23	27	28.5	17	28.4	33.4	1.5	4	8.5	17.5	10	7.5	8.5	7.5	1.5	5	6.6	22	28	3
18	23.7	27	33	32	19.5	30	37.5	2	5	9	19.5	11.5	8.5	9	8	1.5	5	7.5	24	30	3
19	26.7	–	–	37	21.5	30	37.5	–	-	–	–	–	–	–	–	–	–	–	–	–	-
20	26.7	29	35	37	21.5	30	37.5	2	5	9	19.5	11.5	8.5	8.5	7.5	1.5	5	7.5	29.5	35	3
22	27.7	31	37	37	21.5	30	37.5	2	5	9	19.5	11.5	8.5	8.5	7.5	1.5	5	7.5	29.5	35	3
24	31.2	33	39	42.5	22.5	32.5	42.5	2	5	9	19.5	11.5	8.5	8.5	7.5	1.5	5	7.5	32	38	3
25	31.2	34	40	42.5	23	32.5	42.5	2	5	9	19.5	11.5	8.5	8.5	7.5	1.5	5	7.5	32	38	3
28	35	37	43	49	26.5	35	42.5	2	5	9	19.5	11.5	8.5	10	9	1.5	5	7.5	36	42	3
30	37	39	45	49	26.5	35	42.5	2	5	9	19.5	11.5	8.5	11.5	10.5	1.5	5	7.5	39.2	45	3
32	40.2	42	48	53.5	27.5	35	47.5	2	5	9	19.5	11.5	8.5	11.5	10.5	1.5	5	7.5	42.2	48	3
33	40.2	42	48	53.5	27.5	35	47.5	2	5	9	19.5	11.5	8.5	12	11	1.5	5	7.5	44.2	50	3
35	43.2	44	50	57	28.5	35	47.5	2	5	9	19.5	11.5	8.5	12	11	1.5	5	7.5	46.2	52	3
38	46.2	49	56	59	30	36	46	2	6	9	22	14	10	11.3	10.3	1.5	5	9	49.2	55	4
40	48.8	51	58	62	30	36	46	2	6	9	22	14	10	11.8	10.8	1.5	5	9	52.2	58	4
42	51.8	–	–	65.5	30	36	51	–	-	–	–	–	–	13.2	12	2	6	–	–	–	-
43	51.8	54	61	65.5	30	36	51	2	6	9	22	14	10	13.2	12	2	6	9	53.3	62	4
45	53.8	56	63	68	30	36	51	2	6	9	22	14	10	12.8	11.6	2	6	9	55.3	64	4
48	56.8	59	66	70.5	30.5	36	51	2	6	9	22	14	10	12.8	11.6	2	6	9	59.7	68.4	4
50	58.8	62	70	74	30.5	38	50.5	2.5	6	9	23	15	10.5	12.8	11.6	2	6	9.5	60.8	69.3	4
53	62.2	65	73	78.5	33	36.5	59	2.5	6	9	23	15	12	13.5	12.3	2	6	11	63.8	72.3	4
55	64.2	67	75	81	35	36.5	59	2.5	6	9	23	15	12	14.5	13.3	2	6	11	66.5	75.4	4
58	67.2	70	78	85.5	37	41.5	59	2.5	6	9	23	15	12	14.5	13.3	2	6	11	69.5	78.4	4
60	70	72	80	88.5	38	41.5	59	2.5	6	9	23	15	12	14.5	13.3	2	6	11	71.5	80.4	4
65	75	77	85	93.5	40	41.5	69	2.5	6	9	23	15	12	14.2	13	2	6	11	76.5	85.4	4
68	78	81	90	96.5	40	41.2	68.7	2.5	7	9	26	18	12.5	14.9	13.7	2	6	11.3	82.7	91.5	4
70	80	83	92	99.5	40	48.7	68.7	2.5	7	9	26	18	12.5	14.2	13	2	6	11.3	83	92	4
75	85.5	88	97	107	40	48.7	68.7	2.5	7	9	26	18	12.5	15.2	14	2	6	11.3	90.2	99	4
80	90.5	95	105	112	40	48	78	3	7	9	26.2	18.2	13	16.2	15	2	6	12	95.2	104	4
85	96	100	110	120	41	46	76	3	7	9	26.2	18.2	15	16	14.8	2	6	14	100.2	109	4
90	102	105	115	127	45	51	76	3	7	9	26.2	18.2	15	16	14.8	2	6	14	105.2	114	4
95	107	110	120	132	46	51	76	3	7	9	25.2	17.2	15	17	15.8	2	6	14	111.6	120.3	4
100	112	115	125	137	47	51	76	3	7	9	25.2	17.2	15	17	15.8	2	6	14	114.5	123.3	4
