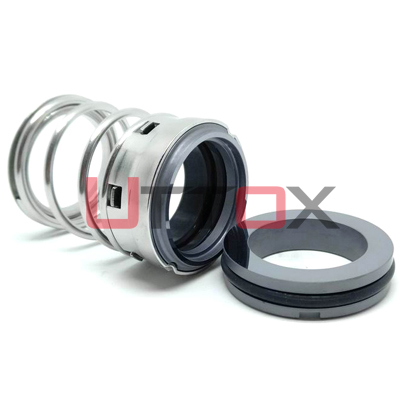

Type: UT-1

——————————————————————————————————————————————————————————————————-


·
·
Operating Limits:​​
● Temperature:-40℃ - +200℃

● Pressure：≤ 17bar

● Speed: ≤ 13m/s

● Shaft size: 1"- 3.5"


·
·
·
·
_ _ _ _ _ __ _ _ _ __ _ _ _ _ _ _  _ _ _ _ _ _  _ __ _ _ _ _ _ _ _ _ _ _ _ _ ​

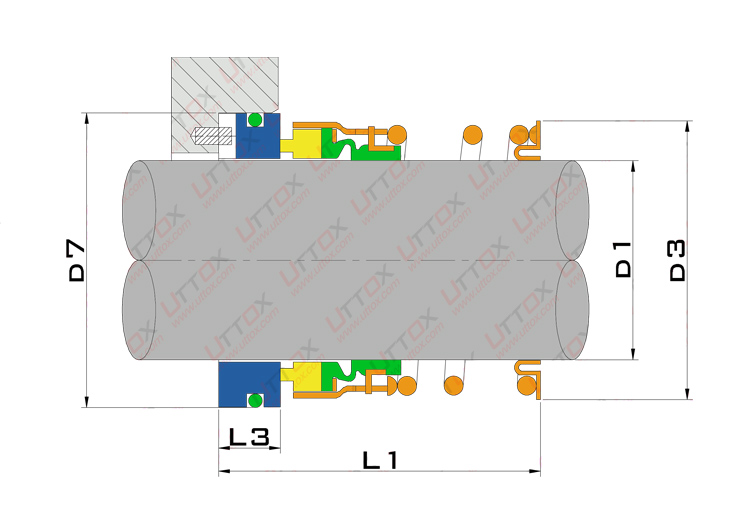

Assembly Dwg:
 __ _ _ _ __ _ _ _ __ _ _ __ _ _ _ __ __ _ _ __ _ _ _ _ _ _
·
Materials:
Springs
RBSIC Seal Rings

● Seal Rings: A,B,Q1/12,Q2/22,

                        U1/12,U2/22

● Elastomer: E,K,N,P,S,V,X
● Metal Part: F,G
SSIC Seal Rings
Tungsten Carbide Seal Rings
Carbon Seal Rings
O-rings
Encapsulated O-rings / FEP O-rings
 __ _ _ _ __ _ _ _ __ _ _ __ _ _ _ __ __ _ _ __ _ _ _ _ _ _
Kalrez® O-rings
_  _  _  _  _ _ _ __ _ _ _ _ _ _ _ _ _ _​_ _ _ _  _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
Chemraz® O-rings
Dimension (mm):

Size(inch)D1D3D7L1L3
1.000 25.438.141.27550.7711.1
1.125 28.57541.544.4552.411.1
1.250 31.754647.62552.411.1
1.375 34.92547.650.853.911.1
1.438 36.550.853.97553.911.1
1.500 38.150.853.97553.911.1
1.625 41.27557.260.32563.512.7
1.750 44.4560.563.563.512.7
1.875 47.62563.566.67566.712.7
2.000 50.866.769.8566.712.7
2.125 53.97571.476.274.614.3
2.250 57.1574.679.37574.614.3
2.375 60.32577.882.5577.814.3
2.500 63.58185.72577.814.3
2.625 66.67585.785.72585.7515.9
2.750 69.8588.988.985.7515.9
2.875 73.0259295.2588.915.9
3.000 76.295.298.42588.915.9
3.500 88.9111.1111.199.1819.8
