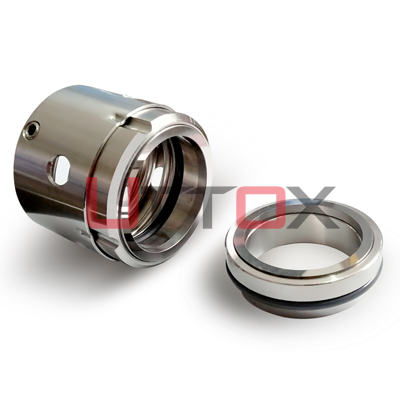

Type: UT-104/104B

——————————————————————————————————————————————————————————————————-

Material Code

Component Seals

O-ring Mounted Mechanical Seals

Rubber Bellows Mechanical Seals

Operating Limits:

Wedge Ring Mechanical Seals

PTFE Bellows Mechanical Seals

● Temperature: -20℃ - +220℃

● Pressure：

UT-104: 10bar

UT-104B: 28bar

● Speed: ≤ 15m/s

Metal Bellows Seals

Catridge
Mechanical Seals

Flygt Pump Seals

* Flygt Pumps Models List

Common Pumps Seals

Grundfos / CNP

_ _ _ _ _ __ _ _ _ __ _ _ _ _ _ _ _ _ _ _ _ _ _ __ _ _ _ _ _ _ _ _ _ _ _ _

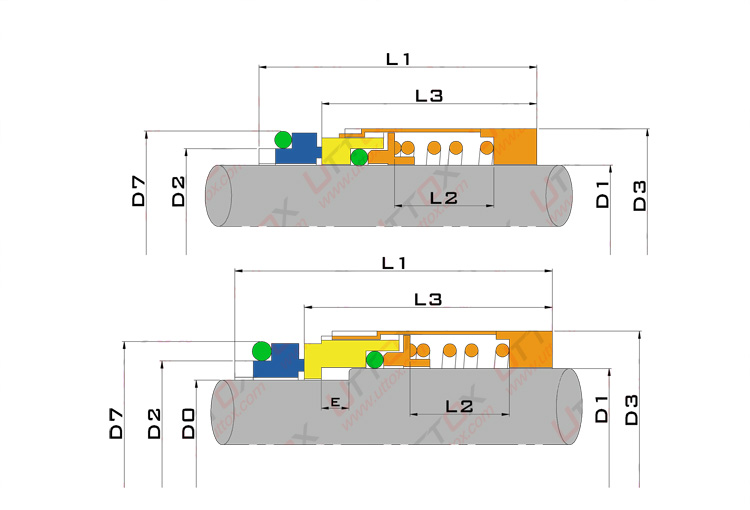

Assembly Dwg:

__ _ _ _ __ _ _ _ __ _ _ __ _ _ _ __ __ _ _ __ _ _ _ _ _ _

Seal Parts & Related Products

Materials:

Springs

RBSIC Seal Rings

● Seal Rings: A,B,Q1/12,Q2/22,

U1/12,U2/22

● Elastomer: E,K,N,P,S,V,X

● Metal Part: F,G,M5,S6

SSIC Seal Rings

Tungsten Carbide Seal Rings

Carbon Seal Rings

O-rings

Encapsulated O-rings / FEP O-rings

__ _ _ _ __ _ _ _ __ _ _ __ _ _ _ __ __ _ _ __ _ _ _ _ _ _

Kalrez® O-rings

Chemraz® O-rings

_ _ _ _ _ _ _ __ _ _ _ _ _ _ _ _ _ __ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

Dimension (mm):

UT-104						UT-104B
D1	D3	D7	L1	L2	L3	D1	D0	D3	D7	L1	L2	L3	e
16	33	33	53	8	37	16	11	33	33	61	8	45	2
18	35	36	56	11	40	16	11	33	33	61	8	45	2
20	37	40	59	11	40	18	13	35	36	64	11	48	2
22	39	42	62	14	43	20	15	37	40	67	11	48	2
25	42	45	62	14	43	22	17	39	42	70	14	51	2
28	45	48	63	15	44	25	20	42	45	70	14	51	2
30	52	50	68	15	49	28	22	45	48	71	15	52	2
35	57	55	70	17	51	30	25	52	50	77	15	58	3
40	62	60	73	20	54	35	28	57	55	80	17	61	3
45	67	65	79	25	60	40	34	62	60	83	20	64	3
50	72	70	82	28	63	45	38	67	65	89	25	70	3
55	77	75	84	30	65	50	44	72	70	92	28	73	3
60	82	80	84	30	65	55	48	77	75	94	30	75	3
65	92	90	96	35	74	60	52	82	80	94	30	75	3
70	97	97	101	37	76	65	58	92	90	103	35	81	3
75	102	102	101	37	76	70	62	97	97	111	37	86	3
80	107	107	106	42	81	75	66	102	102	111	37	86	3
85	112	112	107	42	82	80	72	107	107	116	42	91	3
90	117	177	108	43	83	85	76	112	112	117	42	92	3
95	122	122	108	43	83	90	82	117	117	118	43	93	3
100	127	127	108	43	83	95	85	122	122	118	43	93	3
110	141	142	132	60	105	100	90	127	127	118	43	93	3
120	151	152	132	60	105	110	100	141	142	144	60	117	3
						120	110	151	152	144	80	117	3
