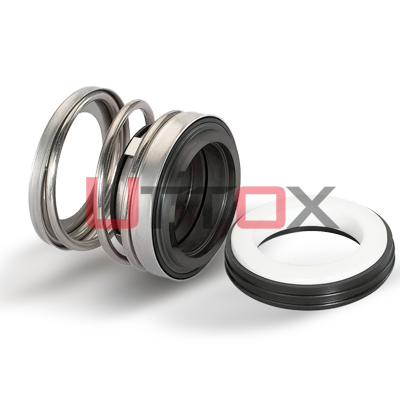

Type: UT-108

——————————————————————————————————————————————————————————————————-


·
·
Operating Limits:​​
● Temperature:-20℃ - +180℃

● Pressure：≤ 8bar

● Speed: ≤ 10m/s

● Shaft size: 8mm-55mm


·
·
·
·
_ _ _ _ _ __ _ _ _ __ _ _ _ _ _ _  _ _ _ _ _ _  _ __ _ _ _ _ _ _ _ _ _ _ _ _ ​

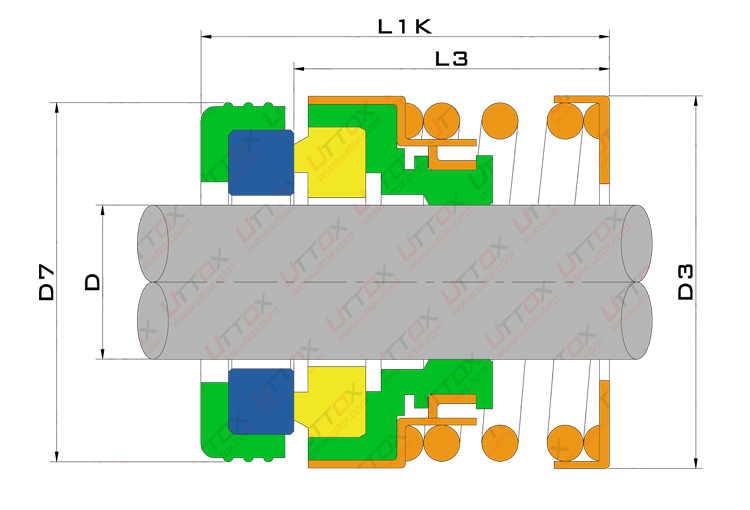

Assembly Dwg:
 __ _ _ _ __ _ _ _ __ _ _ __ _ _ _ __ __ _ _ __ _ _ _ _ _ _
·
Materials:
Springs
RBSIC Seal Rings

● Seal Rings: A,B,Q1/12,Q2/22,

                        U1/12,U2/22

● Elastomer: E,K,N,P,S,V,X
● Metal Part: F,G
SSIC Seal Rings
Tungsten Carbide Seal Rings
Carbon Seal Rings
O-rings
Encapsulated O-rings / FEP O-rings
 __ _ _ _ __ _ _ _ __ _ _ __ _ _ _ __ __ _ _ __ _ _ _ _ _ _
Kalrez® O-rings
_  _  _  _  _ _ _ __ _ _ _ _ _ _ _ _ _ _​_ _ _ _  _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
Chemraz® O-rings
Dimension (mm):

DD3D7L3L1K
820211520
102021/221520
1122231520
122223/261520
1424.525/26/282025
1526.5272025
1626.527/282025
1732332025
1832332025
1934352025
203435/362025
2237372028
253940/412432
2842432735
3045452735
3550.5502937
4057.55831.540
4562.56331.540
50717033.545
5575.57533.545
