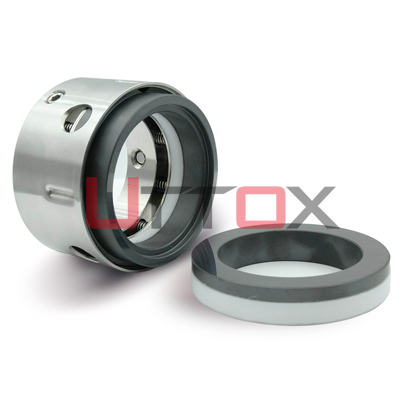

Type: UT-109
——————————————————————————————————————————————————————————————————-
·
·
Equivalent to:
● AESSEAL M01
● VULCAN 1609
● ROTEN 90
● JOHN CRANE 9
● STERLING 290
·
·
·
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
·
Operating Limits:
● Temperature: -40℃ - +250℃
● Pressure：≤ 24bar
● Speed: ≤ 25m/s
● Shaft Size: 0.5” - 5”
_ _ _ _ _ __ _ _ _ __ _ _ _ _ _ _ _ _ _ _ _ _ _ __ _ _ _ _ _ _ _ _ _ _ _ _
__ _ _ _ __ _ _ _ __ _ _ __ _ _ _ __ __ _ _ __ _ _ _ _ _ _

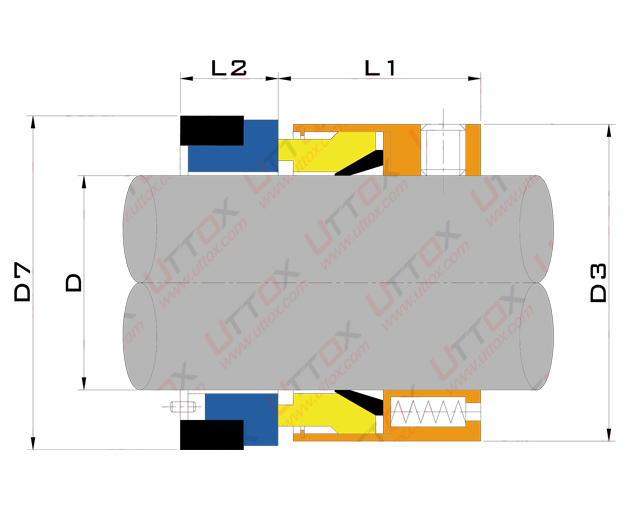

Assembly Dwg:
·
Materials:
Springs
● Seal Rings: A,B,Q1/12,Q2/22,
U1/12,U2/22
● Elastomer: E,K,N,P,S,V,X
● Metal Part: F,G,M5,S6
RBSIC Seal Rings
SSIC Seal Rings
Tungsten Carbide Seal Rings
Carbon Seal Rings
O-rings
__ _ _ _ __ _ _ _ __ _ _ __ _ _ _ __ __ _ _ __ _ _ _ _ _ _
Encapsulated O-rings / FEP O-rings
Kalrez® O-rings
Chemraz® O-rings
Dimension (mm):
_ _ _ _ _ _ _ __ _ _ _ _ _ _ _ _ _ __ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
| SIZE(INCH) | D | D3 | D7 | L1 | L2 |
| 0. 500 | 12.7 | 26. 7 | 25. 40 | 20. 6 | 8. 0 |
| 0. 625 | 15.8 | 30. 7 | 31. 75 | 19. 0 | 10. 3 |
| 0. 750 | 19.1 | 34. 0 | 34. 93 | 22. 2 | 10. 3 |
| 0. 875 | 22.2 | 37. 2 | 38. 10 | 23. 8 | 10. 3 |
| 1. 000 | 25.4 | 40. 3 | 41. 28 | 25. 4 | 11. 1 |
| 1. 125 | 28.5 | 43. 5 | 44. 45 | 27. 0 | 11. 1 |
| 1. 250 | 31.7 | 48. 3 | 47. 63 | 27. 0 | 11. 0 |
| 1. 375 | 34.9 | 51. 5 | 50. 80 | 28. 6 | 11. 1 |
| 1. 500 | 38.1 | 54. 6 | 53. 98 | 28. 6 | 11. 1 |
| 1. 625 | 41.2 | 61. 0 | 60. 33 | 35. 0 | 12. 7 |
| 1. 750 | 44.4 | 64. 2 | 63. 50 | 35. 0 | 12. 7 |
| 1. 875 | 47.6 | 67. 3 | 66. 68 | 35. 0 | 12. 7 |
| 2. 000 | 50.8 | 70. 5 | 69. 85 | 35. 0 | 12. 7 |
| 2. 125 | 53.9 | 76. 9 | 76. 20 | 43. 0 | 14. 3 |
| 2. 250 | 57.1 | 80. 0 | 79. 38 | 43. 0 | 14. 3 |
| 2. 375 | 60.3 | 83. 2 | 82. 55 | 43. 0 | 14. 3 |
| 2. 500 | 63.5 | 86. 4 | 85. 73 | 43. 0 | 14. 6 |
| 2. 625 | 66.6 | 89. 6 | 85. 73 | 43. 0 | 15. 9 |
| 2. 750 | 69.8 | 92. 7 | 88. 90 | 43. 0 | 15. 9 |
| 2. 875 | 73 | 95. 9 | 85. 25 | 43. 0 | 15. 9 |
| 3. 000 | 76.2 | 97. 5 | 98. 43 | 43. 0 | 15. 9 |
| 3. 125 | 79.3 | 100. 7 | 101. 60 | 43. 0 | 19. 8 |
| 3. 250 | 82.5 | 105. 4 | 104. 78 | 43. 0 | 19. 8 |
| 3. 375 | 85.7 | 108. 6 | 107. 95 | 43. 0 | 19. 8 |
| 3. 500 | 88.9 | 111. 8 | 111. 13 | 43. 0 | 19. 8 |
| 3. 625 | 92 | 115. 0 | 114. 30 | 43. 0 | 19. 8 |
| 3. 750 | 95.2 | 118. 1 | 117. 48 | 43. 0 | 19. 8 |
| 3. 875 | 98.4 | 121. 3 | 120. 65 | 43. 0 | 19. 8 |
| 4. 000 | 101.6 | 124. 5 | 123. 83 | 43. 0 | 19. 8 |
| 4. 125 | 104.7 | 127. 7 | 130. 18 | 43. 0 | 19. 8 |
| 4. 250 | 107.9 | 130. 8 | 133. 35 | 43. 0 | 19. 8 |
| 4. 375 | 111.1 | 134. 0 | 136. 53 | 43. 0 | 19. 8 |
| 4. 500 | 114.3 | 137. 2 | 139. 70 | 43. 0 | 19. 8 |
| 4. 625 | 117.5 | 149. 9 | 142. 88 | 51. 0 | 19. 8 |
| 4. 750 | 120.6 | 153. 1 | 146. 05 | 51. 0 | 19. 8 |
| 4. 875 | 123.8 | 156. 2 | 149. 23 | 51. 0 | 19. 8 |
| 5. 000 | 127 | 159. 4 | 152. 40 | 51. 0 | 19. 8 |
