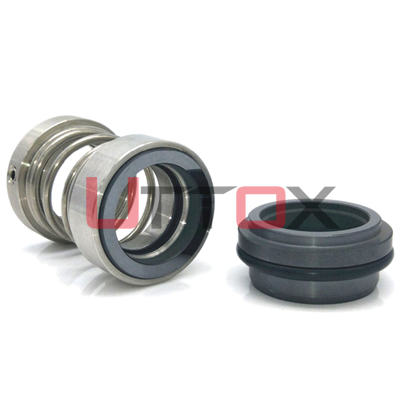

Type: UT-1527

——————————————————————————————————————————————————————————————————-


·
·
Operating Limits:​​
·
·
● Temperature: -20℃ - +220℃

● Pressure：≤ 10bar

● Speed: ≤ 15m/s

● Shaft size: 20mm - 100mm


·
·
_ _ _ _ _ __ _ _ _ __ _ _ _ _ _ _  _ _ _ _ _ _  _ __ _ _ _ _ _ _ _ _ _ _ _ _ ​

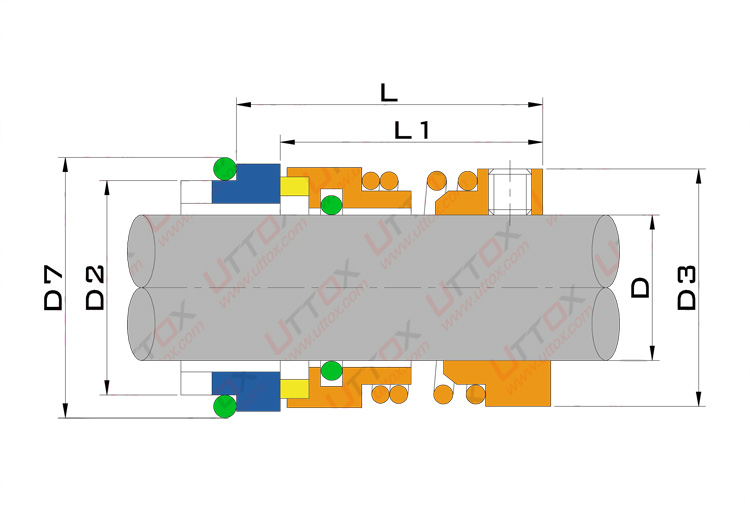

Assembly Dwg:
 __ _ _ _ __ _ _ _ __ _ _ __ _ _ _ __ __ _ _ __ _ _ _ _ _ _
·
Materials:
Springs
RBSIC Seal Rings

● Seal Rings: A,B,Q1/12,Q2/22,

                        U1/12,U2/22

● Elastomer: E,K,N,P,S,V,X
● Metal Part: F,G,M5,S6
SSIC Seal Rings
Tungsten Carbide Seal Rings
Carbon Seal Rings
O-rings
Encapsulated O-rings / FEP O-rings
 __ _ _ _ __ _ _ _ __ _ _ __ _ _ _ __ __ _ _ __ _ _ _ _ _ _
Kalrez® O-rings
Chemraz® O-rings
_  _  _  _  _ _ _ __ _ _ _ _ _ _ _ _ _ _​_ _ _ _  _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
Dimension (mm):
DD3D7LL1
2034354535
2539405040
2842435040
3044455040
3246485545
3549505545
3854565544
4056585544
4561636049
5066706047
5571757057
6080807057
6585858067
7090928064.7
7599978064.7
801041059574.3
851091109074.3
901141159074.3
951191209074.3
1001241259074.3
