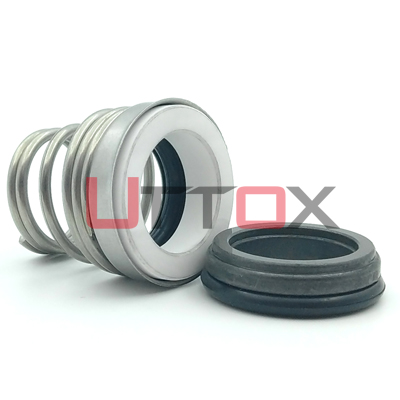

Type: UT-155
——————————————————————————————————————————————————————————————————-
·
·
Equivalent to:
● AESSEAL T04
● VULCAN 13
● Eagle Burgmann BT.FN
● ROTEN 3
● STERLING SR3
● Flowserve 43
● Roplan R63
·
·
·
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
·
Operating Limits:
● Temperature: -20℃ - +150℃
● Pressure：≤ 10bar
● Speed: ≤ 10m/s
● Shaft Size: 10mm - 40mm
_ _ _ _ _ __ _ _ _ __ _ _ _ _ _ _ _ _ _ _ _ _ _ __ _ _ _ _ _ _ _ _ _ _ _ _
__ _ _ _ __ _ _ _ __ _ _ __ _ _ _ __ __ _ _ __ _ _ _ _ _ _

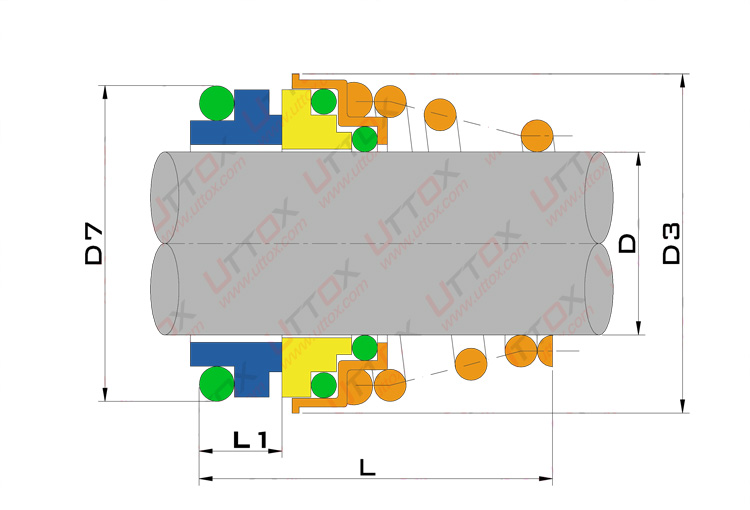

Assembly Dwg:
·
Materials:
Springs
● Seal Rings: A,B,Q1/12,Q2/22,
U1/12,U2/22
● Elastomer: E,K,N,P,S,V,X
● Metal Part: F
RBSIC Seal Rings
SSIC Seal Rings
Tungsten Carbide Seal Rings
Carbon Seal Rings
O-rings
__ _ _ _ __ _ _ _ __ _ _ __ _ _ _ __ __ _ _ __ _ _ _ _ _ _
Encapsulated O-rings / FEP O-rings
Kalrez® O-rings
Chemraz® O-rings
_ _ _ _ _ _ _ __ _ _ _ _ _ _ _ _ _ __ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
Dimension (mm):
| D | D3 | D7 | L | L1 |
| 10 | 20 | 18.1 | 20.8 | 5.5 |
| 11 | 22 | 20.6 | 23.8 | 5.5 |
| 12 | 22 | 20.6 | 23.8 | 5.5 |
| 13 | 25 | 23.1 | 28.3 | 6 |
| 14 | 25 | 23.1 | 28.3 | 6 |
| 15 | 29 | 26.9 | 29.3 | 7 |
| 16 | 29 | 26.9 | 30.3 | 7 |
| 17 | 29 | 26.9 | 30.3 | 7 |
| 18 | 33 | 30.9 | 32.3 | 8 |
| 19 | 33 | 30.9 | 33.3 | 8 |
| 20 | 33 | 30.9 | 33.3 | 8 |
| 21 | 38 | 35.4 | 33.3 | 8 |
| 22 | 38 | 35.4 | 33.3 | 8 |
| 23 | 38 | 35.4 | 35.3 | 8 |
| 24 | 38 | 35.4 | 35.3 | 8 |
| 25 | 40 | 38.2 | 35.8 | 8.5 |
| 28 | 46 | 43.3 | 38.3 | 9 |
| 29 | 46 | 43.3 | 39.3 | 9 |
| 30 | 46 | 43.3 | 39.3 | 9 |
| 32 | 46 | 43.3 | 39.3 | 9 |
| 33 | 48 | 53.5 | 50.8 | 11.5 |
| 35 | 50 | 53.5 | 50.8 | 11.5 |
| 38 | 56 | 60.5 | 50.8 | 11.5 |
| 40 | 58 | 60.5 | 50.8 | 11.5 |
