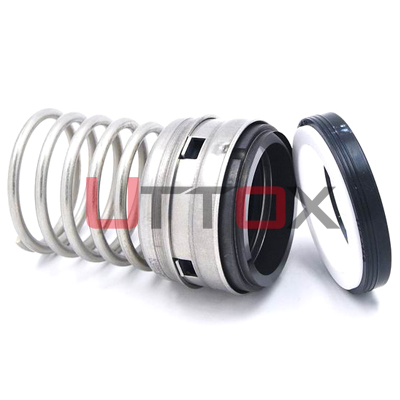

Type: UT-1A

——————————————————————————————————————————————————————————————————-


·
·
Operating Limits:​​
● Temperature:-20℃ - +150℃

● Pressure：≤ 14bar

● Speed: ≤ 15m/s

● Shaft size: 0.5"- 3"


·
·
·
·
_ _ _ _ _ __ _ _ _ __ _ _ _ _ _ _  _ _ _ _ _ _  _ __ _ _ _ _ _ _ _ _ _ _ _ _ ​
Assembly Dwg:
 __ _ _ _ __ _ _ _ __ _ _ __ _ _ _ __ __ _ _ __ _ _ _ _ _ _
·
Materials:
Springs
RBSIC Seal Rings

● Seal Rings: A,B,Q1/12,Q2/22,

                        U1/12,U2/22

● Elastomer: E,K,N,P,S,V,X
● Metal Part: F,G
SSIC Seal Rings
Tungsten Carbide Seal Rings
Carbon Seal Rings
O-rings
Encapsulated O-rings / FEP O-rings
 __ _ _ _ __ _ _ _ __ _ _ __ _ _ _ __ __ _ _ __ _ _ _ _ _ _
Kalrez® O-rings
_  _  _  _  _ _ _ __ _ _ _ _ _ _ _ _ _ _​_ _ _ _  _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
Chemraz® O-rings
Dimension (mm):

D1(INCH)D1(MM)D3D7L1L4
0.500 122527.79448.74
142930.954410.32
0.625 162930.954410.32
0.750 183234.154410.32
203335.74410.32
0.875 223537.34410.32
243840.54410.32
1.000 253840.54410.32
1.125 284647.636011.99
304950.86011.99
1.250 324950.86011.99
335253.986011.99
1.375 355253.986011.99
1.500 385657.156011.99
1.625 405960.356011.99
436263.57111.99
1.750 456263.57111.99
1.875 486566.77111.99
2.000 506869.857113.5
2.125 537173.057113.5
2.250 557576.27113.5
2.375 607879.47113.5
2.500 638182.557113.5
2.625 658692.17115.9
2.750 708995.257015.9
2.875 739298.457315.9
3.000 7595101.657315.9
