Type: UT-202

——————————————————————————————————————————————————————————————————-


·
·
Operating Limits:​​
● Temperature:-20℃ - +130℃

● Pressure：≤ 6bar

● Speed: ≤ 8m/s

● Shaft size: 14mm - 25mm


·
·
·
·
_ _ _ _ _ __ _ _ _ __ _ _ _ _ _ _  _ _ _ _ _ _  _ __ _ _ _ _ _ _ _ _ _ _ _ _ ​

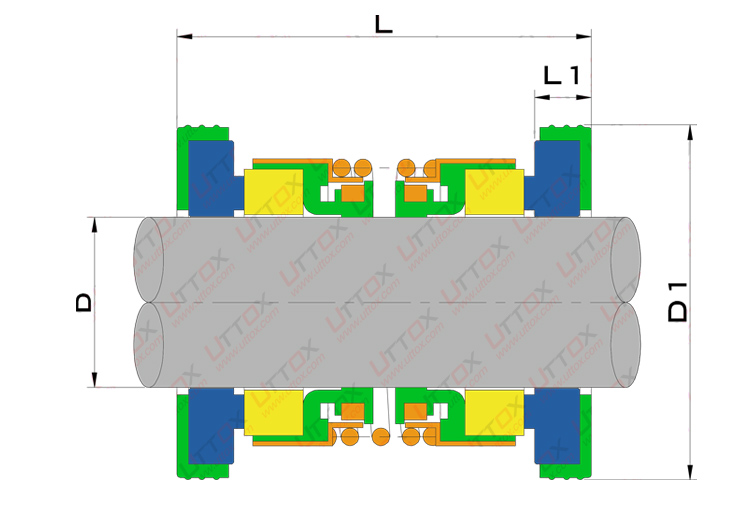

Assembly Dwg:
 __ _ _ _ __ _ _ _ __ _ _ __ _ _ _ __ __ _ _ __ _ _ _ _ _ _
·
Materials:
Springs
RBSIC Seal Rings

● Seal Rings: A,B,Q1/12,Q2/22,

                        U1/12,U2/22

● Elastomer: E,P,V
● Metal Part: F
SSIC Seal Rings
Tungsten Carbide Seal Rings
Carbon Seal Rings
O-rings
Encapsulated O-rings / FEP O-rings
 __ _ _ _ __ _ _ _ __ _ _ __ _ _ _ __ __ _ _ __ _ _ _ _ _ _
Kalrez® O-rings
Chemraz® O-rings
_  _  _  _  _ _ _ __ _ _ _ _ _ _ _ _ _ _​_ _ _ _  _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
Dimension (mm):

DD7LL1
1426/28/3038.37
1528/3038.37
1628/3038.37
183438.37
203640.37
254151.39
