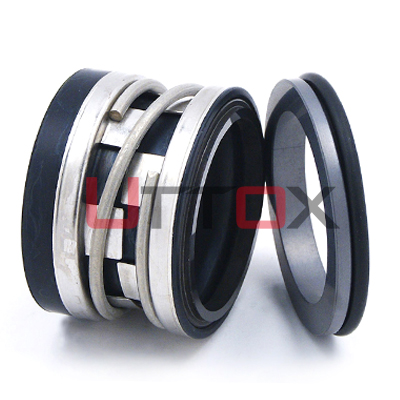

Type: UT-2100/2100K

——————————————————————————————————————————————————————————————————-

Material Code

Component Seals

O-ring Mounted Mechanical Seals

Rubber Bellows Mechanical Seals

Operating Limits:

Wedge Ring Mechanical Seals

PTFE Bellows Mechanical Seals

● Temperature:-20℃ - +180℃

● Pressure：≤ 12bar

● Speed: ≤ 13m/s

● Shaft size: 10mm - 75mm

Metal Bellows Seals

Catridge
Mechanical Seals

Flygt Pump Seals

* Flygt Pumps Models List

_ _ _ _ _ __ _ _ _ __ _ _ _ _ _ _ _ _ _ _ _ _ _ __ _ _ _ _ _ _ _ _ _ _ _ _

Common Pumps Seals

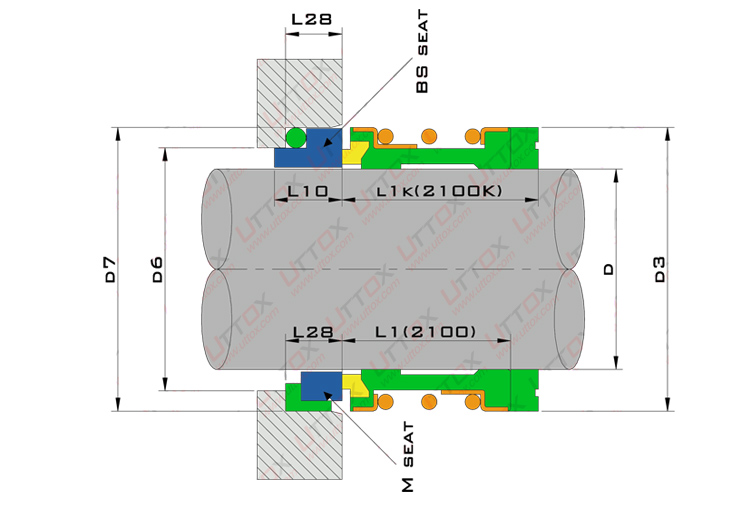

Assembly Dwg:

__ _ _ _ __ _ _ _ __ _ _ __ _ _ _ __ __ _ _ __ _ _ _ _ _ _

Seal Parts & Related Products

Materials:

Springs

RBSIC Seal Rings

● Seal Rings: A,B,Q1/12,Q2/22,

U1/12,U2/22

● Elastomer: E,K,N,P,S,V,X

● Metal Part: F

SSIC Seal Rings

Tungsten Carbide Seal Rings

Carbon Seal Rings

O-rings

Encapsulated O-rings / FEP O-rings

__ _ _ _ __ _ _ _ __ _ _ __ _ _ _ __ __ _ _ __ _ _ _ _ _ _

Kalrez® O-rings

Chemraz® O-rings

_ _ _ _ _ _ _ __ _ _ _ _ _ _ _ _ _ __ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

Dimension (mm):

D	D3	D6	D7	L1	L1K	L28	L10
10	20	17	21	15	27.5	5	6
12	22	19	23	15	26.5	6	6.8
14	24	21	25	15	29	6	6.8
15	25	22	26	15	29	6	6.8
16	26	23	27	15	29	6	6.8
18	32	27	33	20	31.5	6	7
20	34	29	35	20	31.5	6	7
22	36	31	37	20	31.5	6	7
24	38	33	39	20	34	6	7
25	39	34	40	20	34	6	7
28	42	37	43	26	36.5	6	7
30	44	39	45	26	35.5	7	8
32	46	42	48	26	35.5	7	8
33	47	42	48	26	35.5	7	8
35	49	44	50	26	34.5	8	9
38	54	49	56	30	37	8	9
40	56	51	58	30	37	8	9
43	59	54	61	30	37	8	9
45	61	56	63	30	37	8	9
48	64	59	66	30	35	10	11
50	66	62	70	30	37.5	10	11
53	69	65	73	30	37.5	10	11
55	71	67	75	30	37.5	10	11
60	80	72	80	33	40.5	12	12.7
65	85	77	85	33	40.5	12	12.7
70	90	83	92	33	48	12	12.7
75	99	88	97	40	48	12	12.7
