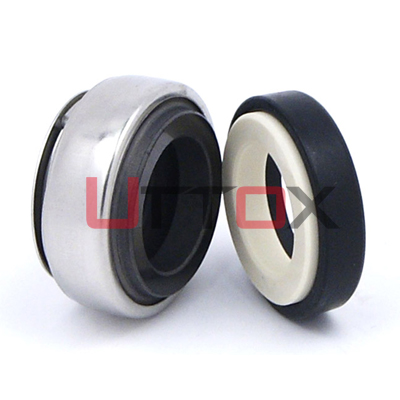

Type: UT-301

——————————————————————————————————————————————————————————————————-

Material Code

Component Seals

O-ring Mounted Mechanical Seals

Rubber Bellows Mechanical Seals

Operating Limits:

Wedge Ring Mechanical Seals

PTFE Bellows Mechanical Seals

● Temperature:-20℃ - +150℃

● Pressure：≤ 4bar

● Speed: ≤ 10m/s

● Shaft size: 10mm - 70mm

Metal Bellows Seals

Catridge
Mechanical Seals

Flygt Pump Seals

* Flygt Pumps Models List

_ _ _ _ _ __ _ _ _ __ _ _ _ _ _ _ _ _ _ _ _ _ _ __ _ _ _ _ _ _ _ _ _ _ _ _

Common Pumps Seals

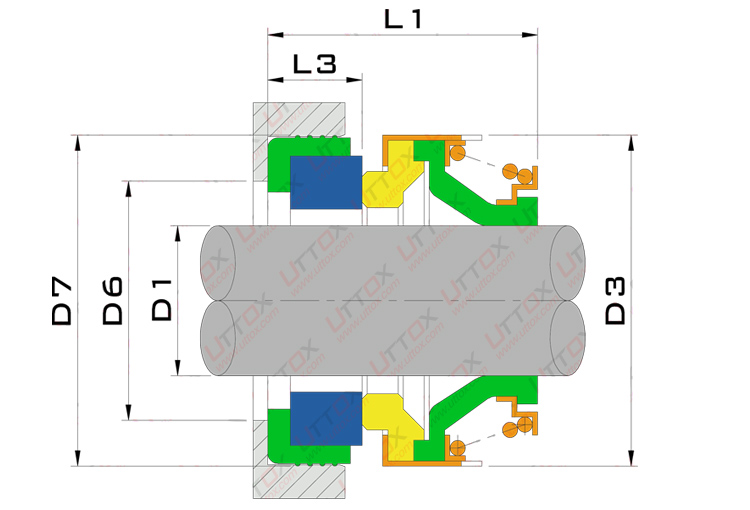

Assembly Dwg:

__ _ _ _ __ _ _ _ __ _ _ __ _ _ _ __ __ _ _ __ _ _ _ _ _ _

Seal Parts & Related Products

Materials:

Springs

RBSIC Seal Rings

● Seal Rings: A,B,Q1/12,Q2/22,

U1/12,U2/22

● Elastomer: E,P,V

● Metal Part: F

SSIC Seal Rings

Tungsten Carbide Seal Rings

Carbon Seal Rings

O-rings

Encapsulated O-rings / FEP O-rings

__ _ _ _ __ _ _ _ __ _ _ __ _ _ _ __ __ _ _ __ _ _ _ _ _ _

Kalrez® O-rings

Chemraz® O-rings

_ _ _ _ _ _ _ __ _ _ _ _ _ _ _ _ _ __ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

Dimension (mm):

D1	D3	D6	D7	L1	L3
6	18	8	22	14	4
8	18	10	22	15	4
8	20	10	22/26	15/16.5	4.0/5.5
8	24	10	26	16.5	5.5
10	24	12	26	21	8
11	24	13	26	21	8
12	24	14	25/26	21	8
13	24	15	26	18.5/21	5.5/8.0
13	28	16	28	21	8
13	32	16	29.5	30.5	8
14	28	16	28/28.5	21	8
14	32	16	29.5	21	8
15	28	16	28.5/30	21	8
15	32	16	30/29.5	21	8
15	39	18	38	21	8
16	28	16	29.5/30	21	8
16	32	18	29.5	21	8
16	39	18	38	21	8
16	32	16	30	29	10
17	39	19	42	21	8
18	39	20	42	21	8
19	39	21	42	21	8
20	39	22	42	21	8
20	42	24	45	23	10
22	36	24	45	26.5	10
22	42	24	45	23	10
23	47	25	50	23.5	10
24	47	26	50	23.5	10
25	42	27	50	23.5	10
25	47	27	50	23.5	10
26	47	29	50	23.5	10
27	47	30	50	23.5	10
28	54	31	57	25	10
30	54	33	57	25	10
32	54	35	57	25	10
35	60	38	63	26	10
38	65	41	68	30	12
40	65	43	68	30	12
45	70	48	73	32	12
50	85	52	88	38	15
55	85	58	88	38	15
60	105	63	110	45	15
65	105		110	47	15
70	105		110	47	15
