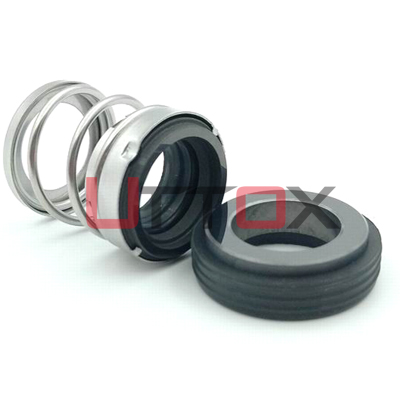

Type: UT-560A/560B/560C

——————————————————————————————————————————————————————————————————-

Material Code

Component Seals

O-ring Mounted Mechanical Seals

Operating Limits:

Rubber Bellows Mechanical Seals

Wedge Ring Mechanical Seals

● Temperature:-30℃ - +180℃

● Pressure：≤ 10bar

● Speed: ≤ 12m/s

● Shaft size: 10mm - 55mm

0.375" - 3"

16mm - 75mm

PTFE Bellows Mechanical Seals

Metal Bellows Seals

Catridge
Mechanical Seals

Flygt Pump Seals

* Flygt Pumps Models List

Common Pumps Seals

_ _ _ _ _ __ _ _ _ __ _ _ _ _ _ _ _ _ _ _ _ _ _ __ _ _ _ _ _ _ _ _ _ _ _ _

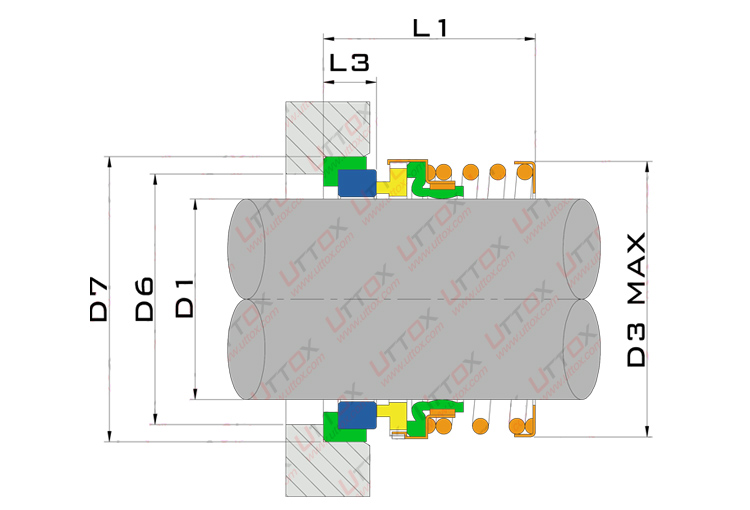

Assembly Dwg:

__ _ _ _ __ _ _ _ __ _ _ __ _ _ _ __ __ _ _ __ _ _ _ _ _ _

Seal Parts & Related Products

Materials:

Springs

RBSIC Seal Rings

● Seal Rings: A,B,Q1/12,Q2/22,

U1/12,U2/22

● Elastomer: E,P,V

● Metal Part: F

SSIC Seal Rings

Tungsten Carbide Seal Rings

Carbon Seal Rings

O-rings

Encapsulated O-rings / FEP O-rings

__ _ _ _ __ _ _ _ __ _ _ __ _ _ _ __ __ _ _ __ _ _ _ _ _ _

Kalrez® O-rings

Chemraz® O-rings

_ _ _ _ _ _ _ __ _ _ _ _ _ _ _ _ _ __ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

Dimension (mm):

560-B
Size(inch)	D1	D3	D7	L1	L3
0.375	9.53	21	22.2	28.5	6.3
0.500	12.7	23	25.4	30.2	8
0.625	15.88	26.5	31.8	32.5	10.3
0.750	19.05	30.5	35	32.5	10.3
0.875	22.23	34	38.1	34.3	10.3
1.000	25.4	40	41.3	36.4	11
1.125	28.58	44.5	44.5	38	11
1.250	31.75	46.5	47.7	38	11
1.375	34.93	51.5	50.8	39.5	11
1.500	38.1	54	54	39.5	11
1.625	41.28	58	60.3	47.7	12.7
1.750	44.45	61.5	63.5	47.7	12.7
1.875	47.63	65.5	66.7	50.7	12.7
2.000	50.8	70.5	69.9	50.7	12.7
2.125	53.98	75	76.2	57.3	14.3
2.250	57.15	79	79.4	57.3	14.3
2.375	60.33	82	82.6	60.3	14.3
2.500	63.5	86	85.7	60.3	14.3
2.625	66.68	91.5	85.7	65	16
2.750	69.85	91.5	88.9	65	16
2.875	73.03	99	95.3	68.5	16
3.000	76.2	99	98.4	68.5	16

560-A
D1	D3	D6	D7	L1	L3
10	23.5	16	24	25	7
11	23.5	16	24	25	7
12	26	17	26	25	7
14	28	21	28	25.5	7
15	30	21	28	29.5	7
16	32	22	32	33.5	10
18	32.5	25	35	36.5	10
19	32.5	25	35	36.5	10
20	35.5	27	38	38	10
22	37.5	29	40	40.3	10
25	42	32	44	39.3	10
28	47	34	46	40	10
30	46	35	45	38.2	7.5
30	48	38	50	40	10
32	50	40	54	40	10
35	54.5	44	58	42	10
38	58.5	46	60	42.6	10
40	62.5	48	64	42.6	10
45	66.5	52	66	45	10
50	72.5	58	72	54.6	11.5
55	72	60	75	59.4	12

560-C
D1	D3	D7	L1	L3
16	26.5	27	36	10.3
18	30.5	33	37.5	10.3
20	34	35	37.5	10.3
22	34	37	38.2	11
24	40	39	40	11
25	40	40	40	11
28	44.5	43	42.5	11
30	46.5	45	42.5	11
32	46.5	48	42.5	11
33	50.5	48	42.5	11
35	51.5	50	42.5	11
38	54	56	45	11
40	58	58	45	12.7
43	61.5	61	45	12.7
45	61.5	63	45	12.7
48	65.5	66	45	12.7
50	70.5	70	47.5	12.7
53	74	73	47.5	13.5
55	76	75	47.5	14.2
58	79	78	52.5	14.2
60	82	80	52.5	14.2
63	87	83	52.5	14.2
65	85	85	52	16
68	91.5	90	52	16
70	91.5	92	60	16
73	99	93	60	16
75	99	97	60	16
