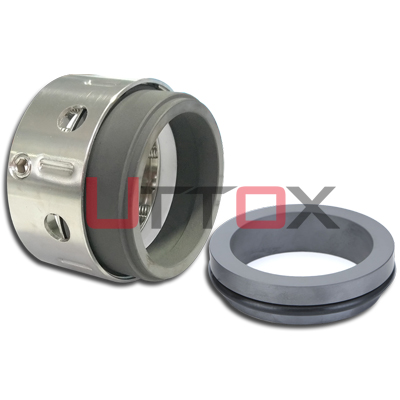

Type: UT-58B/59B

——————————————————————————————————————————————————————————————————-

Material Code

Component Seals

Equivalent to:

O-ring Mounted Mechanical Seals

● AESSEAL M04S

● VULCAN 1659BS

● EAGLE BURGMANN BT-C5.KB

● JOHN CRANE 58B

● STERLING 259BS

Rubber Bellows Mechanical Seals

Wedge Ring Mechanical Seals

PTFE Bellows Mechanical Seals

Metal Bellows Seals

Catridge
Mechanical Seals

_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

Flygt Pump Seals

* Flygt Pumps Models List

Common Pumps Seals

Operating Limits:

Grundfos / CNP

Xylem

● Temperature: -20℃ - +250℃

● Pressure：≤ 25bar

● Speed: ≤ 15m/s

● Shaft Size: 14mm - 100mm

_ _ _ _ _ __ _ _ _ __ _ _ _ _ _ _ _ _ _ _ _ _ _ __ _ _ _ _ _ _ _ _ _ _ _ _

Wilo-EMU

Hidrostal

__ _ _ _ __ _ _ _ __ _ _ __ _ _ _ __ __ _ _ __ _ _ _ _ _ _

Assembly Dwg:

Lowara

Materials:

Seal Parts & Related Products

Springs

● Seal Rings: A,B,Q1/12,Q2/22,

U1/12,U2/22

● Elastomer: E,K,N,P,S,V,X

● Metal Part: F,G,M5,S6

RBSIC Seal Rings

SSIC Seal Rings

Tungsten Carbide Seal Rings

Carbon Seal Rings

O-rings

__ _ _ _ __ _ _ _ __ _ _ __ _ _ _ __ __ _ _ __ _ _ _ _ _ _

Encapsulated O-rings / FEP O-rings

Kalrez® O-rings

Chemraz® O-rings

Dimension (mm):

_ _ _ _ _ _ _ __ _ _ _ _ _ _ _ _ _ __ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

D	D2	D3	L1K	L2	L3	D6	D7
14	18	32	42.5	18	30.5	21	25
16	20	34	42.5	18	30.5	23	27
18	22	36	45.0	20	31.5	27	33
20	24	38	45.0	20	31.5	29	35
22	26	40	45.0	20	31.5	31	37
24	28	42	47.5	20	34.2	33	39
25	30	44	47.5	20	34.5	34	40
28	33	47	50.0	20	37.5	37	43
30	35	49	50.0	20	38.0	39	45
32	38	54	50.0	20	38.0	42	48
33	38	54	50.0	20	38.0	42	48
35	40	56	50.0	20	38.0	44	50
38	43	59	52.5	23	39.5	49	56
40	45	61	52.5	23	39.5	51	58
43	48	64	52.5	23	39.5	54	61
45	50	66	52.5	23	39.5	56	63
48	53	69	52.5	25	39.5	59	66
50	55	71	57.5	25	44.0	62	70
53	58	78	57.5	25	44.0	65	73
55	60	80	57.5	25	44.0	67	75
58	63	83	62.5	25	49.0	70	78
60	65	85	62.5	25	49.0	72	80
63	68	88	62.5	25	49.0	75	83
65	70	90	62.5	25	49.0	77	85
70	75	95	70.0	28	55.5	83	92
75	80	104	70.0	28	55.5	88	97
80	85	109	70.0	28	55.0	95	105
85	90	114	75.0	28	60.0	100	110
90	95	119	75.0	28	60.0	105	115
95	100	124	75.0	28	60.0	110	120
100	105	129	75.0	28	60.0	115	125
