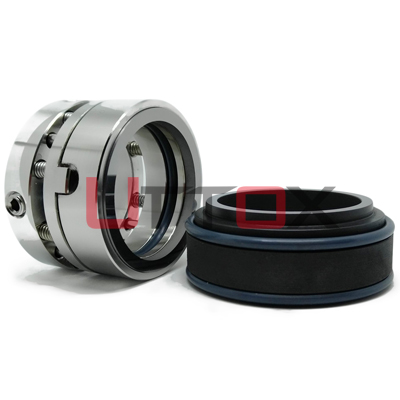

Type: UT-606

——————————————————————————————————————————————————————————————————-

Material Code

Component Seals

O-ring Mounted Mechanical Seals

Rubber Bellows Mechanical Seals

Wedge Ring Mechanical Seals

PTFE Bellows Mechanical Seals

Operating Limits:

Metal Bellows Seals

● Temperature:-20℃ - +230℃

● Pressure：≤ 12bar

● Speed: ≤ 25m/s

● Shaft size: 20mm - 110mm

Catridge
Mechanical Seals

Flygt Pump Seals

* Flygt Pumps Models List

Common Pumps Seals

Grundfos / CNP

Xylem

APV

_ _ _ _ _ __ _ _ _ __ _ _ _ _ _ _ _ _ _ _ _ _ _ __ _ _ _ _ _ _ _ _ _ _ _ _

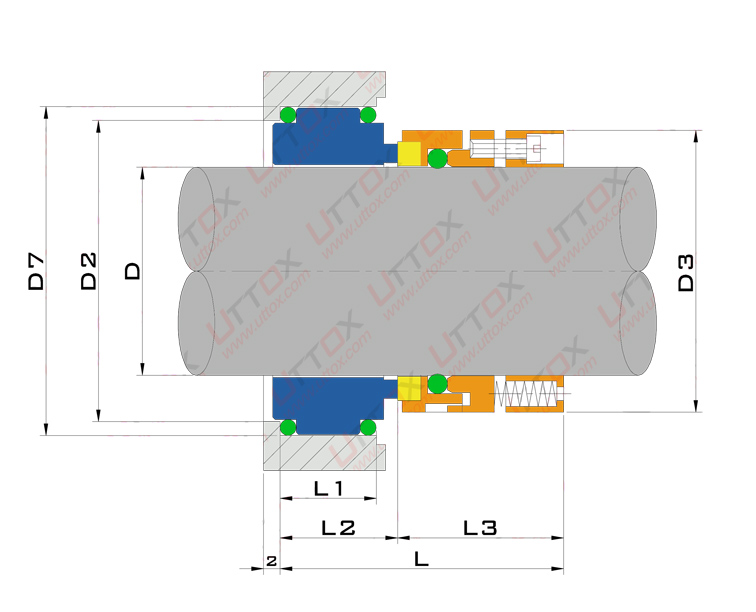

Assembly Dwg:

__ _ _ _ __ _ _ _ __ _ _ __ _ _ _ __ __ _ _ __ _ _ _ _ _ _

Seal Parts & Related Products

Materials:

Springs

RBSIC Seal Rings

● Seal Rings: A,B,Q1/12,Q2/22,

U1/12,U2/22

● Elastomer: E,K,N,P,S,V,X

● Metal Part: F,G,M5,S6

SSIC Seal Rings

Tungsten Carbide Seal Rings

Carbon Seal Rings

O-rings

Encapsulated O-rings / FEP O-rings

__ _ _ _ __ _ _ _ __ _ _ __ _ _ _ __ __ _ _ __ _ _ _ _ _ _

Kalrez® O-rings

Chemraz® O-rings

_ _ _ _ _ _ _ __ _ _ _ _ _ _ _ _ _ __ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

Dimension (mm):

D	D3	D2	D7	L	L1	L2	L3
20	34	36	42	69	18	23	46
22	36	38	44	69	18	23	46
24	38	40	46	69	18	23	46
25	39	41	47	70	18	23	47
28	42	44	50	72	18	23	49
30	44	46	52	72	18	23	49
32	46	48	54	75	18	23	52
33	47	49	55	75	18	23	52
35	49	51	57	78	18	23	55
38	54	58	64	82	20	25	57
40	56	60	66	82	20	25	57
42	58	62	68	82	20	25	57
43	59	63	69	82	20	25	57
45	61	65	71	82	20	25	57
48	64	68	74	89	20	25	64
50	66	70	76	93	20	25	68
52	68	72	78	94	20	25	69
53	69	73	79	94	20	25	69
55	71	75	81	96	20	25	71
58	76	83	89	99	22	28	71
60	78	85	91	102	22	28	74
62	80	87	93	102	22	28	74
63	81	88	94	102	22	28	74
65	83	90	96	106	22	28	78
68	86	93	99	108	24	30	78
70	90	95	101	109	24	30	79
75	95	4	110	114	24	30	84
80	100	109	115	115	25	31	84
85	105	114	120	116	25	31	85
90	110	119	125	121	25	31	90
95	115	124	130	121	25	31	90
100	121	129	135	121	25	31	90
105	129	134	140	128	25	31	97
110	134	139	145	128	25	31	97
