Type: UT-8B1

——————————————————————————————————————————————————————————————————-

Material Code

Component Seals

Equivalent to:

O-ring Mounted Mechanical Seals

Rubber Bellows Mechanical Seals

● AESSEAL M02S

● JOHN CRANE 8B1

Wedge Ring Mechanical Seals

PTFE Bellows Mechanical Seals

_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

Metal Bellows Seals

Catridge
Mechanical Seals

Operating Limits:

Flygt Pump Seals

* Flygt Pumps Models List

● Temperature: -40℃ - +260℃

● Pressure：≤35bar

● Speed: ≤ 25m/s

● Shaft Size: 0.5" - 6"

Common Pumps Seals

_ _ _ _ _ __ _ _ _ __ _ _ _ _ _ _ _ _ _ _ _ _ _ __ _ _ _ _ _ _ _ _ _ _ _ _

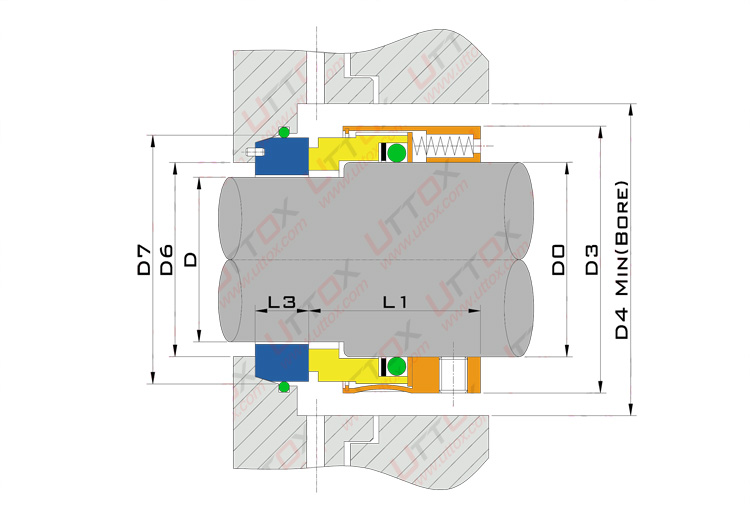

Assembly Dwg:

__ _ _ _ __ _ _ _ __ _ _ __ _ _ _ __ __ _ _ __ _ _ _ _ _ _

Lowara

Materials:

Seal Parts & Related Products

Springs

● Seal Rings: A,B,Q1/12,Q2/22,

U1/12,U2/22

● Elastomer: E,K,N,P,S,V,X

● Metal Part: F,G,M5,S6

RBSIC Seal Rings

SSIC Seal Rings

Tungsten Carbide Seal Rings

Carbon Seal Rings

O-rings

__ _ _ _ __ _ _ _ __ _ _ __ _ _ _ __ __ _ _ __ _ _ _ _ _ _

Encapsulated O-rings / FEP O-rings

Kalrez® O-rings

Chemraz® O-rings

_ _ _ _ _ _ _ __ _ _ _ _ _ _ _ _ _ __ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

Dimension (mm):

size(inch)	D0	D	D3	D4	D6	D7	L1	L3
0.625	15.87	12.7	30.8	34	14.5	25.6	27	7.9
0.750	19.05	15.9	34	37	17.5	31.95	30	10.3
0.875	22.22	19.1	37.2	40	21	35.12	32	10.3
1.000	25.4	22.2	40.3	43	24	38.3	33	10.3
1.125	28.58	25.4	43.4	46	27.5	41.48	35	11.15
1.250	31.75	28.6	48.3	51	30.5	44.65	35	11.15
1.375	34.93	28.6	51.3	54	30.5	44.65	37	11.15
1.500	38.1	31.8	54.5	58	33.5	47.83	37	11.15
1.625	41.28	34.9	60.8	64	37.5	51	45	11.15
1.750	44.45	38.1	64	67	40	54.18	45	11.15
1.875	47.62	41.3	67.2	70	43.5	60.53	45	12.75
2.000	50.8	44.5	70.4	73	46.5	63.7	45	12.75
2.125	53.98	47.6	76.7	80	49.5	66.88	52	12.75
2.250	57.15	50.8	79.9	83	53	70.05	52	12.75
2.375	60.33	54	83.1	86	56	76.4	52	14.33
2.500	63.5	57.2	86.2	89	59	79.58	52	14.33
2.625	66.68	60.3	89.4	92	62.5	82.75	52	14.33
2.750	69.85	63.5	92.6	96	65.5	85.93	52	14.33
2.875	73.03	66.7	95.8	99	68.5	85.93	52	15.93
3.000	76.2	69.9	97.3	100	72	89.1	52	15.93
3.125	79.38	73	100.5	104	75	95.45	52	15.93
3.250	82.55	76.2	105.3	108	78.5	98.63	52	15.93
3.375	85.73	79.4	108.5	111	81.5	101.8	52	19.84
3.500	88.9	82.6	111.6	115	84.5	104.98	52	19.84
3.625	92.08	85.7	114.8	118	88	108.15	52	19.84
3.750	95.25	88.9	118	121	91	111.33	52	19.84
3.875	98.43	92.1	121.2	124	94	114.5	52	19.84
4.000	101.6	95.3	124.3	127	97.5	117.68	52	19.84
4.125	104.78	98.4	127	134	100.5	120.85	52.4	19.84
4.250	107.95	101.6	133.4	137	103.5	124.03	52.4	19.84
4.375	111.13	104.8	136.5	140	107	130.38	52.4	19.84
4.500	114.3	107.9	139.7	143	110	133.55	52.4	19.84
4.625	117.48	111.1	142.9	146	110	133.55	52.4	19.84
4.750	120.65	114.3	146.1	149	113.5	136.72	52.4	19.84
4.875	123.83	117.4	149.2	153	116.5	139.9	52.4	19.84
5.000	127	120.6	152.4	156	119.5	143.08	52.4	19.84
5.125	130.18	123.8	155.6	159	122.5	146.25	52.4	19.84
5.250	133.35	127	165.1	168	126	149.43	60.3	19.84
5.375	136.53	130.2	168.28	171.45	129	152.6	60.3	19.84
5.500	139.7	133.3	171.5	175	132	155.77	60.3	19.84
5.625	142.88	136.5	174.6	178	135.5	158.95	60.3	19.84
5.750	146.05	139.7	177.8	181	138.5	162.12	60.3	19.84
5.875	149.23	142.9	181	184	141.5	165.3	60.3	19.84
6.000	152.4	146	184.2	188	145	168.47	60.3	19.84
