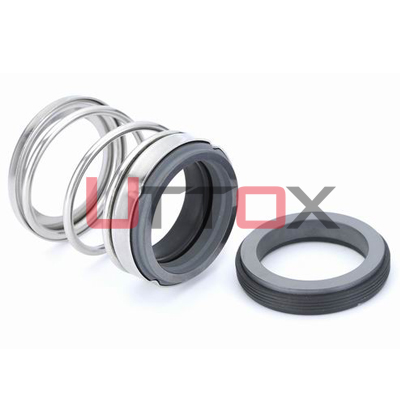

Type: UT-BIA

——————————————————————————————————————————————————————————————————-


·
·
Operating Limits:​​
·
·
● Temperature:-30℃ - +200℃

● Pressure：≤ 10bar

● Speed: ≤ 10m/s

● Shaft size: 14mm - 90mm


·
·
_ _ _ _ _ __ _ _ _ __ _ _ _ _ _ _  _ _ _ _ _ _  _ __ _ _ _ _ _ _ _ _ _ _ _ _ ​

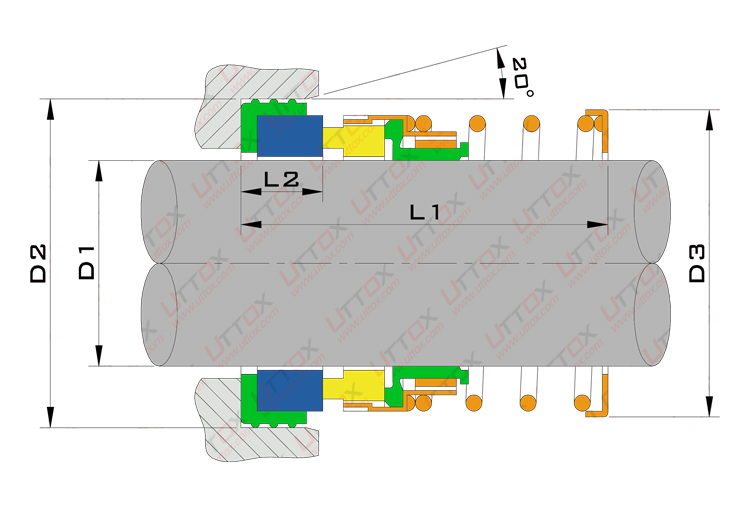

Assembly Dwg:
 __ _ _ _ __ _ _ _ __ _ _ __ _ _ _ __ __ _ _ __ _ _ _ _ _ _
·
Materials:
Springs
RBSIC Seal Rings

● Seal Rings: A,B,Q1/12,Q2/22,

                        U1/12,U2/22

● Elastomer: E,K,N,P,S,V,X
● Metal Part: F
SSIC Seal Rings
Tungsten Carbide Seal Rings
Carbon Seal Rings
O-rings
Encapsulated O-rings / FEP O-rings
 __ _ _ _ __ _ _ _ __ _ _ __ _ _ _ __ __ _ _ __ _ _ _ _ _ _
Kalrez® O-rings
Chemraz® O-rings
_  _  _  _  _ _ _ __ _ _ _ _ _ _ _ _ _ _​_ _ _ _  _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
Dimension (mm):
D1D3D2L1L2
1426.530245
162832265
1829.535307.5
2031.635298
25404033.58
2842.54333.58
30454534.59
3247.54842.59
3347.54842.59
35505042.59
3854.55642.59
40575842.59
4360.561469.5
45636347.59.5
48646647.59.5
5067.87047.59.5
53717350.59.5
55747550.59.5
58807851.59.5
6082.58051.59.5
6585855210
7092925611
801051046712
851101097612
901151117812
