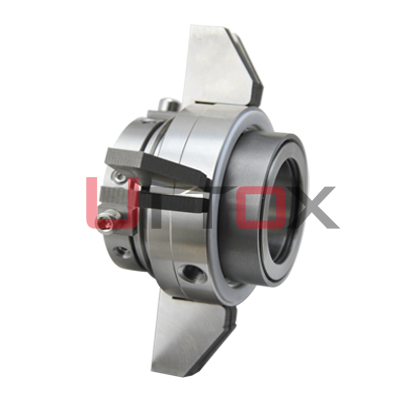

Type: UT-CH155

——————————————————————————————————————————————————————————————————-


·
·
Operating Limits:​​
·
·
● Temperature:-20℃ - +220℃

● Pressure：≤ 25bar

● Speed: ≤ 16m/s

● Shaft size: 25mm - 120mm


·
·
_ _ _ _ _ __ _ _ _ __ _ _ _ _ _ _  _ _ _ _ _ _  _ __ _ _ _ _ _ _ _ _ _ _ _ _ ​
Assembly Dwg:
 __ _ _ _ __ _ _ _ __ _ _ __ _ _ _ __ __ _ _ __ _ _ _ _ _ _
·
Materials:
Springs
RBSIC Seal Rings

● Seal Rings: A,B,Q1/12,Q2/22,

                        U1/12,U2/22

● Elastomer:P, V, E
● Metal Part: F, G, M5, T6
SSIC Seal Rings
Tungsten Carbide Seal Rings
Carbon Seal Rings
O-rings
Encapsulated O-rings / FEP O-rings
 __ _ _ _ __ _ _ _ __ _ _ __ _ _ _ __ __ _ _ __ _ _ _ _ _ _
Kalrez® O-rings
Chemraz® O-rings
_  _  _  _  _ _ _ __ _ _ _ _ _ _ _ _ _ _​_ _ _ _  _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
Dimension (mm):
DB(max)C(min)C(max)E(min)FG(8mm)G(10mm)G(12mm)G(16mm)
2511844511648707274
2811847521648707274
3012449571648767880
3212451581648777981
3312452591648767880
3512854621648808284
3813357671648858789
4013459681648868890
4313462691648868890
4514064731648929496
4813967741648919395
50145697816489799101
5515074831648102104106
6016079911648112114116
65194921022264132134138
70197951052264135137141
752031001132264141143147
802071051162264144146150
852131101222264151153157
902161151252264154156160
952221201312264160162166
1002291271382264167169173
1102361361482264174176180
1202481451582264186188192
