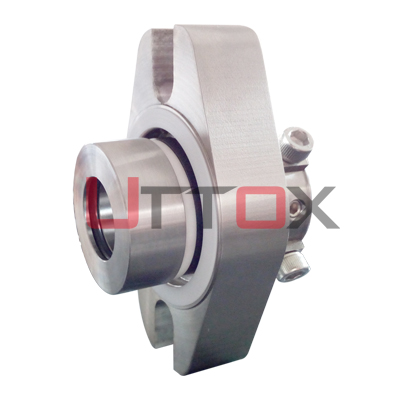

Type: UT-CONVERTOR II

——————————————————————————————————————————————————————————————————-

Material Code

Component Seals

O-ring Mounted Mechanical Seals

Rubber Bellows Mechanical Seals

Wedge Ring Mechanical Seals

PTFE Bellows Mechanical Seals

Operating Limits:

Metal Bellows Seals

● Temperature:-20℃ - +220℃

● Pressure：≤ 25bar

● Speed: ≤ 15m/s

● Shaft size: 24mm - 100mm

1" - 4"

Catridge
Mechanical Seals

Flygt Pump Seals

* Flygt Pumps Models List

Common Pumps Seals

Grundfos / CNP

Xylem

APV

_ _ _ _ _ __ _ _ _ __ _ _ _ _ _ _ _ _ _ _ _ _ _ __ _ _ _ _ _ _ _ _ _ _ _ _

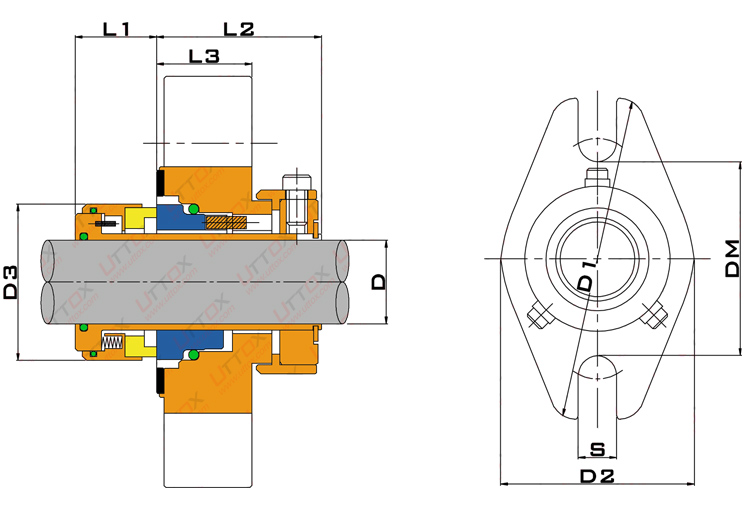

Assembly Dwg:

__ _ _ _ __ _ _ _ __ _ _ __ _ _ _ __ __ _ _ __ _ _ _ _ _ _

Seal Parts & Related Products

Materials:

Springs

RBSIC Seal Rings

● Seal Rings: A,B,Q1/12,Q2/22,

U1/12,U2/22

● Elastomer:K, P, V, E

● Metal Part: F, G, M5, T6

SSIC Seal Rings

Tungsten Carbide Seal Rings

Carbon Seal Rings

O-rings

Encapsulated O-rings / FEP O-rings

__ _ _ _ __ _ _ _ __ _ _ __ _ _ _ __ __ _ _ __ _ _ _ _ _ _

Kalrez® O-rings

Chemraz® O-rings

_ _ _ _ _ _ _ __ _ _ _ _ _ _ _ _ _ __ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

Dimension (mm):

D	D3 (min)	D3 (max)	D1	D2	DM	L1	L2	L3	S
24	40	48	101.6	56.1	55.6	28.6	31.8	20.7	12
25	41	48	101.6	56.1	55.6	28.6	31.8	20.7	12
28	44	50	104.8	59.3	58.8	28.6	31.8	20.7	12
30	46	54	108	62.4	61.9	28.6	31.8	20.7	12
32	48	54	108	62.4	61.9	28.6	31.8	20.7	12
33	49	55	108	62.4	61.9	28.6	31.8	20.7	12
35	51	59	108	67.2	66.7	28.6	31.8	20.7	12
38	57.2	62	114.3	72	71.5	28.6	33.4	22.3	12
40	58	64	114.3	72	71.5	28.6	33.4	22.3	12
43	61	67	120.7	75.1	74.6	28.6	33.4	22.3	12
45	63.5	69	127	78.3	77.8	30.2	35	23.8	12
48	66.7	72	133.4	81.5	81	30.2	35	23.8	12
50	68	74	133.4	81.5	81	30.2	35	23.8	12
53	71	77	139.7	84.7	84.2	30.2	36.5	25.4	16
55	74	79	146.1	87.8	87.3	30.2	36.5	25.4	16
58	79.4	85.7	165.1	98.9	95.3	30.2	36.5	25.4	20
60	79.4	85.7	165.1	98.9	95.3	30.2	36.5	25.4	20
63	85.8	101.6	177.8	121.2	111.2	28.6	41.2	25.4	20
65	88.9	101.6	177.8	121.2	111.2	28.6	41.2	25.4	20
68	92.1	101.6	177.8	121.2	111.2	28.6	41.2	25.4	20
70	92.1	101.6	177.8	121.2	111.2	28.6	41.2	25.4	20
75	98.5	114.3	190.5	130.7	125.4	30.2	50.8	31.7	20
80	101.6	114.3	190.5	130.7	125.4	30.2	50.8	31.7	20
85	108	123.8	203.2	140.2	135	30.2	50.8	31.7	20
90	114.3	133.3	215.9	149.7	144.5	30.2	50.8	31.7	20
95	117.5	133.3	215.9	149.7	144.5	30.2	50.8	31.7	20
100	123.9	139.7	228.5	156.1	154	30.2	50.8	31.7	20
