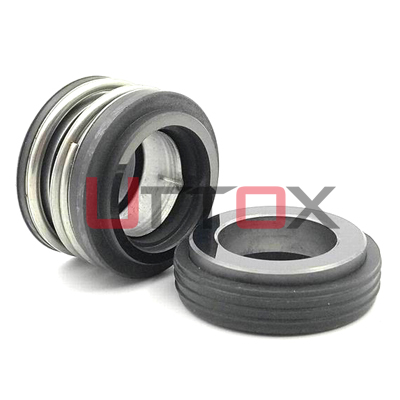

Type: UT-E

——————————————————————————————————————————————————————————————————-


·
·
Operating Limits:​​
● Temperature:-30℃ - +200℃

● Pressure：≤ 10bar

● Speed: ≤ 12m/s

● Shaft size: 0.3125"-1.125"


·
·
·
·
_ _ _ _ _ __ _ _ _ __ _ _ _ _ _ _  _ _ _ _ _ _  _ __ _ _ _ _ _ _ _ _ _ _ _ _ ​

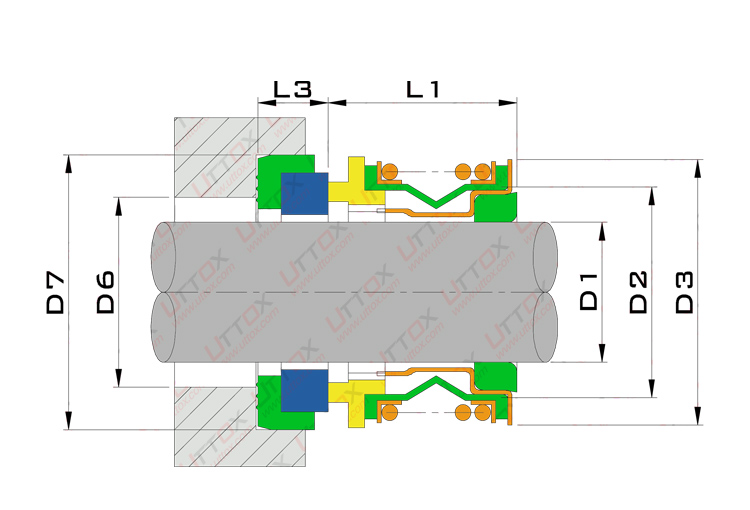

Assembly Dwg:
 __ _ _ _ __ _ _ _ __ _ _ __ _ _ _ __ __ _ _ __ _ _ _ _ _ _
·
Materials:
Springs
RBSIC Seal Rings

● Seal Rings: A,B,Q1/12,Q2/22,

                        U1/12,U2/22

● Elastomer: E,K,N,P,S,V,X
● Metal Part: F
SSIC Seal Rings
Tungsten Carbide Seal Rings
Carbon Seal Rings
O-rings
Encapsulated O-rings / FEP O-rings
 __ _ _ _ __ _ _ _ __ _ _ __ _ _ _ __ __ _ _ __ _ _ _ _ _ _
Kalrez® O-rings
_  _  _  _  _ _ _ __ _ _ _ _ _ _ _ _ _ _​_ _ _ _  _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
Chemraz® O-rings
Dimension (mm):
ModelD1D7D3D6D2L1L3
UTE-5/16"7.92525.4271620.6324.68
UTE-3/8"9.5222.22523.814.317.4222.226.2
UTE-1/2"12.725.426.9717.4520.6322.86.2
UTE-5/8"15.87530.130.9420.6323.826.58.7
UTE-5/8"H15.87531.7530.9420.6323.83010.3
UTE-5/8"K15.87531.7530.9420.6323.828.510.3
UTE-3/4"H19.0534.92534.1123.826.873010.3
UTE-3/4"C19.0534.92534.1123.826.8728.510.3
UTE-1"25.441.27542.8530.1533.3331.7311.1
UTE-11/8"28.57544.454633.536.531.7511.1
