Type: UT-EMU

——————————————————————————————————————————————————————————————————-


·
·
Operating Limits:​​
·
·
● Temperature:-40℃ - +200℃

● Pressure：≤ 12bar

● Speed: ≤ 20m/s

● Shaft size: 30mm - 60mm




·
·
_ _ _ _ _ __ _ _ _ __ _ _ _ _ _ _  _ _ _ _ _ _  _ __ _ _ _ _ _ _ _ _ _ _ _ _ ​

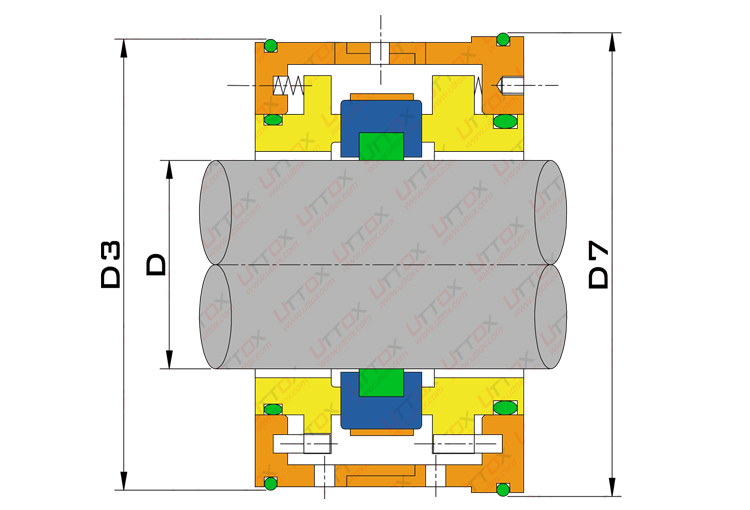

Assembly Dwg:
 __ _ _ _ __ _ _ _ __ _ _ __ _ _ _ __ __ _ _ __ _ _ _ _ _ _
·
Materials:
Springs
RBSIC Seal Rings

● Seal Rings: A,B,Q1/12,Q2/22,

                        U1/12,U2/22

● Elastomer: P, V, E
● Metal Part: F, G, M5, T6
SSIC Seal Rings
Tungsten Carbide Seal Rings
Carbon Seal Rings
O-rings
Encapsulated O-rings / FEP O-rings
 __ _ _ _ __ _ _ _ __ _ _ __ _ _ _ __ __ _ _ __ _ _ _ _ _ _
Kalrez® O-rings
Chemraz® O-rings
_  _  _  _  _ _ _ __ _ _ _ _ _ _ _ _ _ _​_ _ _ _  _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
Dimension (mm):
DD3D7L1
30626546
30A626546
35677046
35A727247
40727546
50909252
50A838946
60929946
