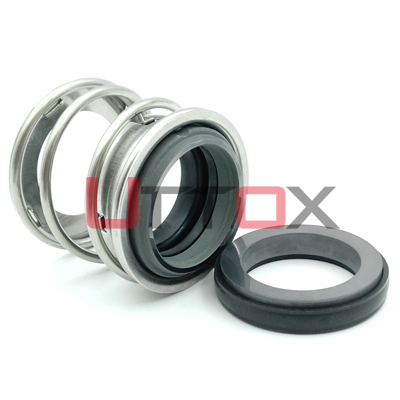

Type: UT-FBD

——————————————————————————————————————————————————————————————————-


·
·
Operating Limits:​​
● Temperature:-20℃ - +180℃

● Pressure：≤ 12bar

● Speed: ≤ 16m/s

● Shaft size: 16mm-120mm


·
·
·
·
_ _ _ _ _ __ _ _ _ __ _ _ _ _ _ _  _ _ _ _ _ _  _ __ _ _ _ _ _ _ _ _ _ _ _ _ ​

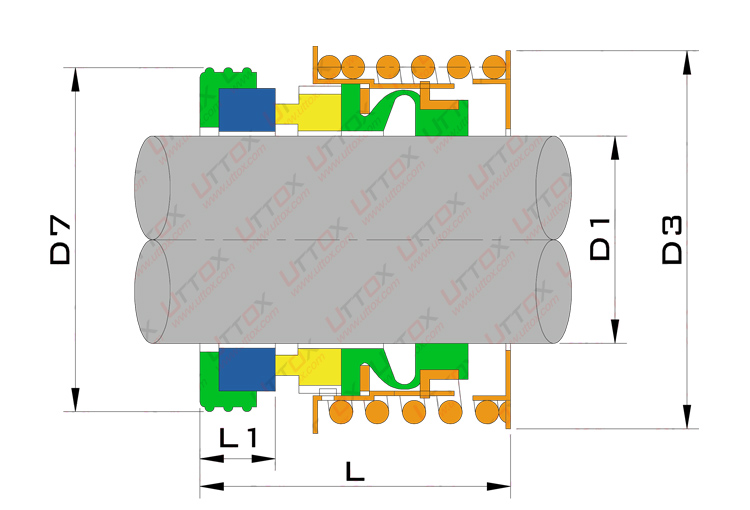

Assembly Dwg:
 __ _ _ _ __ _ _ _ __ _ _ __ _ _ _ __ __ _ _ __ _ _ _ _ _ _
·
Materials:
Springs
RBSIC Seal Rings

● Seal Rings: A,B,Q1/12,Q2/22,

                        U1/12,U2/22

● Elastomer: E,K,N,P,S,V,X
● Metal Part: F
SSIC Seal Rings
Tungsten Carbide Seal Rings
Carbon Seal Rings
O-rings
Encapsulated O-rings / FEP O-rings
 __ _ _ _ __ _ _ _ __ _ _ __ _ _ _ __ __ _ _ __ _ _ _ _ _ _
Kalrez® O-rings
_  _  _  _  _ _ _ __ _ _ _ _ _ _ _ _ _ _​_ _ _ _  _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
Chemraz® O-rings
Dimension (mm):
D1D3D7LL1
16343033.38
1836.83233.38
2038.83433.38
2241.53633.38
2544.83934.38
2848.54334.38
30524834.38
35575340.310
40675844.310
45736346.310
50796851.310
55847353.312
60907953.312
6598.58661.3612
70103.59164.312
75110.59663.312
8012010570.314
8512511070.314
9013211570.314
9513712070.314
10014412576.314
11015713578.316
120169.514588.316
