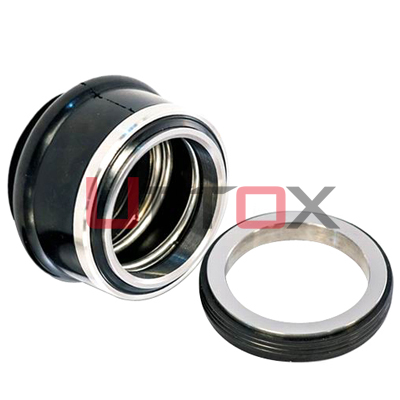

Type: UT-KB

——————————————————————————————————————————————————————————————————-


·
·
Operating Limits:​​
● Temperature:-30℃ - +200℃

● Pressure：≤ 10bar

● Speed: ≤ 12m/s

● Shaft size: 28mm-50mm

                      1.125"- 2"


·
·
·
·
_ _ _ _ _ __ _ _ _ __ _ _ _ _ _ _  _ _ _ _ _ _  _ __ _ _ _ _ _ _ _ _ _ _ _ _ ​

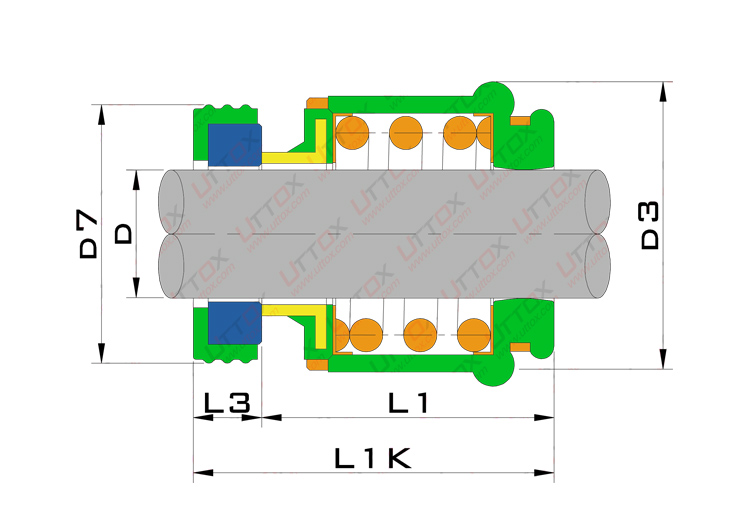

Assembly Dwg:
 __ _ _ _ __ _ _ _ __ _ _ __ _ _ _ __ __ _ _ __ _ _ _ _ _ _
·
Materials:
Springs
RBSIC Seal Rings

● Seal Rings: A,B,Q1/12,Q2/22,

                        U1/12,U2/22

● Elastomer: E,K,N,P,S,V,X
● Metal Part: F,G,M5,S6
SSIC Seal Rings
Tungsten Carbide Seal Rings
Carbon Seal Rings
O-rings
Encapsulated O-rings / FEP O-rings
 __ _ _ _ __ _ _ _ __ _ _ __ _ _ _ __ __ _ _ __ _ _ _ _ _ _
Kalrez® O-rings
_  _  _  _  _ _ _ __ _ _ _ _ _ _ _ _ _ _​_ _ _ _  _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
Chemraz® O-rings
Dimension (mm):

D(mm)D3D7L1KL1L3
285044403010
35645445.535.510
5074.57057.445.212.2




Size(inch)DD3D7L1KL1L3
1.125 28.5755044.4541.13011.1
1.500 38.16653.97545.535.510
2.000 50.875.569.8558.245.213
