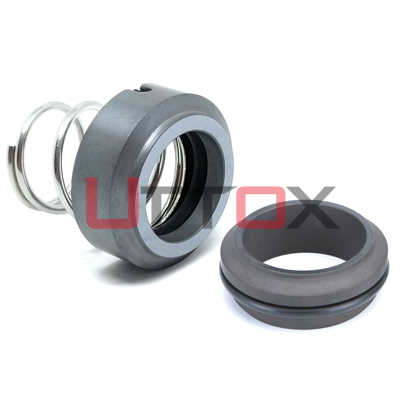

Type: UT-M2N

——————————————————————————————————————————————————————————————————-


·
·
Equivalent to: ​

● Eagle Burgmann M2N

● AESSEAL T07D

● Roten 22

·
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _  _ _ _ _ _ _ _ _ _ _ _ _
·
Operating Limits:​​
·
● Temperature: -20℃ - +180℃
● Pressure：≤ 10bar
● Speed: ≤ 15m/s
● Shaft Size: 6mm - 38mm
·
_ _ _ _ _ __ _ _ _ __ _ _ _ _ _ _  _ _ _ _ _ _  _ __ _ _ _ _ _ _ _ _ _ _ _ _ ​

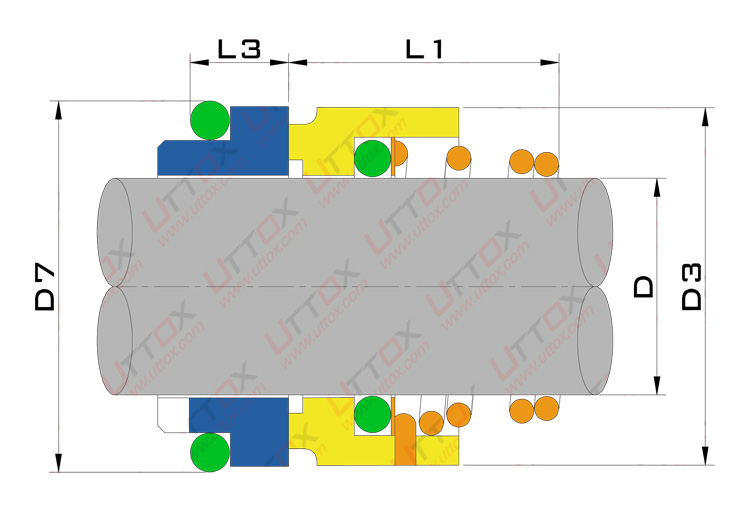

Assembly Dwg:
 __ _ _ _ __ _ _ _ __ _ _ __ _ _ _ __ __ _ _ _ _ _ _ __ _ _ _ _ _ _
·
Materials:
Springs

● Seal Rings: A,B,Q1/12,Q2/22,

                        U1/12,U2/22

● Elastomer: E,K,N,P,S,V,X
● Metal Part: F,G
RBSIC Seal Rings
SSIC Seal Rings
Tungsten Carbide Seal Rings
Carbon Seal Rings
O-rings
 __ _ _ _ __ _ _ _ __ _ _ __ _ _ _ __ __ _ _ _ _ _ _ __ _ _ _ _ _ _
Encapsulated O-rings / FEP O-rings
Kalrez® O-rings
Chemraz® O-rings
Dimension (mm):
_  _  _  _  _ _ _ __ _ _ _ _ _ _ _ _ _ _​_ _ _ _  _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
DD3D7L1L3
615\\\
818\\\
10202117.5 10.0
12222317.5 10.0
14252517.5 10.0
15272719.5 10.0
16272719.5 10.0
18303320.5 11.5
20323522.0 11.5
22353723.5 11.5
24383925.0 11.5
25404026.5 11.5
26414026.5 11.5
28434326.5 11.5
30474526.5 11.5
32484828.5 11.5
35535028.5 11.5
38565633.5 14.0
