Type: UT-M3N/M32/M37/M37G

——————————————————————————————————————————————————————————————————-

Material Code

Component Seals

Equivalent to:

O-ring Mounted Mechanical Seals

● Eagle Burgmann M3N/M32/M37/M37G

Rubber Bellows Mechanical Seals

Wedge Ring Mechanical Seals

PTFE Bellows Mechanical Seals

_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

Metal Bellows Seals

Catridge
Mechanical Seals

Operating Limits:

Flygt Pump Seals

● Temperature: -20℃ - +180℃

● Pressure：≤ 10bar

● Speed: ≤ 15m/s

● Shaft Size: 10mm - 80mm

* Flygt Pumps Models List

Common Pumps Seals

Grundfos / CNP

Xylem

APV

_ _ _ _ _ __ _ _ _ __ _ _ _ _ _ _ _ _ _ _ _ _ _ __ _ _ _ _ _ _ _ _ _ _ _ _

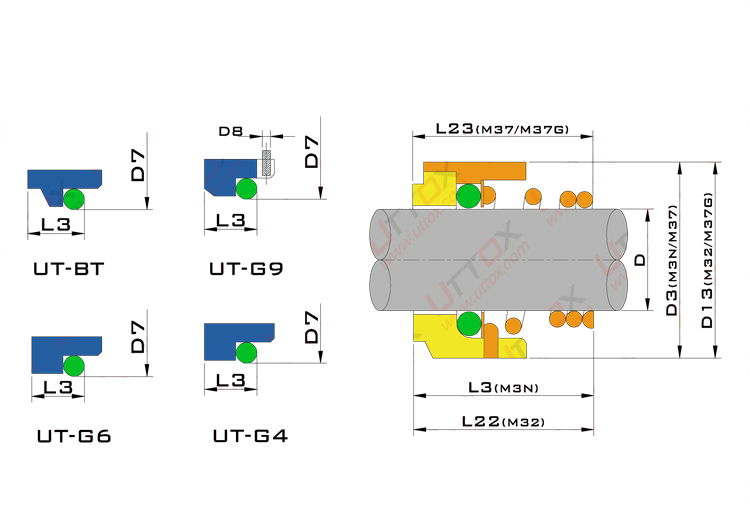

Assembly Dwg:

__ _ _ _ __ _ _ _ __ _ _ __ _ _ _ __ __ _ _ __ _ _ _ _ _ _

Lowara

Materials:

Seal Parts & Related Products

Springs

● Seal Rings: A,B,Q1/12,Q2/22,

U1/12,U2/22

● Elastomer: E,K,N,P,S,V,X

● Metal Part: F,G,M5,S6

RBSIC Seal Rings

SSIC Seal Rings

Tungsten Carbide Seal Rings

Carbon Seal Rings

O-rings

__ _ _ _ __ _ _ _ __ _ _ __ _ _ _ __ __ _ _ __ _ _ _ _ _ _

Encapsulated O-rings / FEP O-rings

Kalrez® O-rings

Chemraz® O-rings

Dimension (mm):

_ _ _ _ _ _ _ __ _ _ _ _ _ _ _ _ _ __ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

D	D3	D13	L22	L23	L3	BT		G4		G9		G6
D	D3	D13	L22	L23	L3	d7	l3	d7	l3	d7	l3	d7	l3
10	19	20	16.9		15.5	18.1	5.5	19.2	6.6	21	10	21	6.6
12	21	22	17.4		16	20.6	55.0	21.6	5.6	23	10	23	6.6
14	23	24	17.4	16.5	16.5	23.1	6.0	24.6	5.6	25	10	25	6.6
16	26	26	19.5	16.5	18	26.9	7.0	28.0	7.5	27	10	27	6.6
18	29	31	20.5	18	19.5	30.9	8.0	30.0	8.0	33	11.5	33	7.5
20	31	34	22	19	22	30.9	8.0	35.0	7.5	35	11.5	35	7.5
22	33	36	23.5	20.5	21.5	35.4	8.0	35.0	7.5	37	11.5	37	7.5
24	35	38	25	22	23.5	35.4	8.0	38.0	7.5	39	11.5	39	7.5
25	36	39	26.5	23.5	26.5	38.2	8.5	38.0	7.5	40	11.5	40	7.5
28	40	42	26.5	24.5	26.5	43.3	9.0	42.0	9.0	43	11.5	43	7.5
30	43	44	25	24.5	26.5	43.3	9.0	45.0	10.5	45	11.5	45	7.5
32	46	46	28.5	28	28.5	43.3	9.0	48.0	10.5	48	11.5	48	7.5
33	47	47			28.5	53.5	11.5	\	\	\	\	\	\
35	49	49	28.5	28	28.5	53.5	11.5	52.0	11.0	50	11.5	50	7.5
38	53	54	32.2	31	33.5	60.5	11.5	55.0	10.3	56	14.0	56	9.0
40	56	56	34.7	34	36	60.5	11.5	58.0	10.8	58	14.0	58	9.0
43	59	59			38.5	60.5	11.5	62.0	12.0	61	14.0	61	9.0
45	61	61	39.2	36.5	39.5	65.5	11.5	64.0	11.6	63	14.0	63	9.0
48	64	64	44.7	42	46	65.5	11.5	68.4	11.6	66	14.0	66	9.0
50	66	66	45.7	43	45	72.5	11.5	69.3	11.6	70	15.0	70	9.5
53	69	69			47	\	\	\	\	73	15.0	70	9.5
55	71	71	49	47	49	72.5	11.5	75.4	13.3	75	15.0	75	11.0
58	76	78	52	50	55	\	\	78.4	13.3	78	15.0	78	11.0
60	78	79	53	51	55	79.3	11.5	80.4	13.3	80	15.0	80	11.0
63	83	83			55	\	\	\	\	83	15.0	83	11.0
65	84	85	54.3	52	55	84.5	11.5	85.4	13.0	85	15.0	85	11.0
68	88	88	55.3	52.7	55	\	\	91.5	13.7	90	18.0	90	11.3
70	90	90	56.3	54	57	89.5	11.5	92.0	13.0	92	18.0	92	11.3
75	98	98	56.3	54	62	3.9	11.5	99.0	14.0	97	18.0	97	11.3
80	100	103	59.3	58	61.8	99.5	11.5	104	15.0	105	18.2	105	12.0
