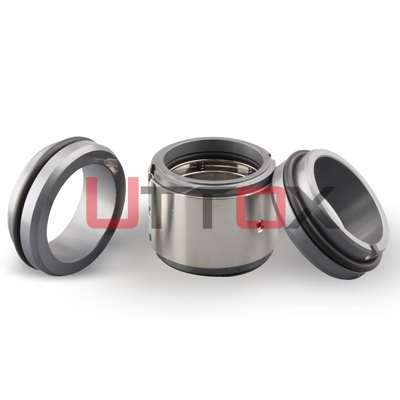

Type: UT-M74D

——————————————————————————————————————————————————————————————————-

Material Code

Component Seals

Equivalent to:

O-ring Mounted Mechanical Seals

● Eagle Burgmann M74D

Rubber Bellows Mechanical Seals

Wedge Ring Mechanical Seals

PTFE Bellows Mechanical Seals

_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

Metal Bellows Seals

Catridge
Mechanical Seals

Operating Limits:

Flygt Pump Seals

● Temperature: -20℃ - +220℃

● Pressure：≤ 16bar

● Speed: ≤ 20m/s

● Shaft Size: 18mm -100mm

* Flygt Pumps Models List

Common Pumps Seals

Grundfos / CNP

Xylem

APV

_ _ _ _ _ __ _ _ _ __ _ _ _ _ _ _ _ _ _ _ _ _ _ __ _ _ _ _ _ _ _ _ _ _ _ _

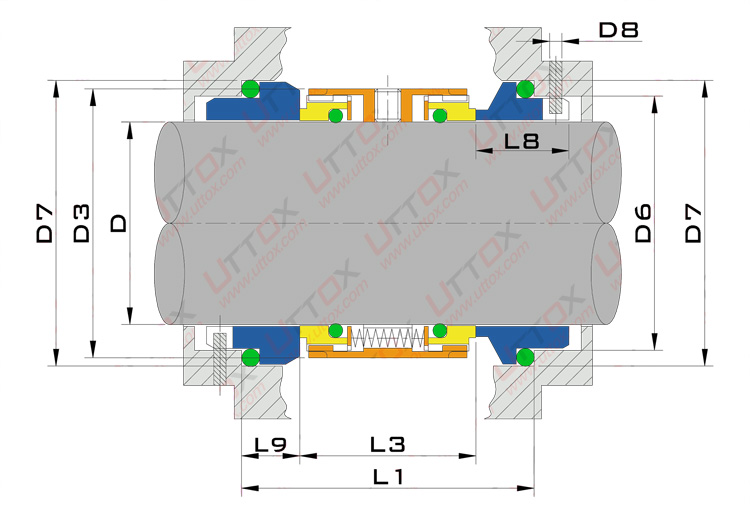

Assembly Dwg:

__ _ _ _ __ _ _ _ __ _ _ __ _ _ _ __ __ _ _ __ _ _ _ _ _ _

Lowara

Materials:

Seal Parts & Related Products

Springs

● Seal Rings: A,B,Q1/12,Q2/22,

U1/12,U2/22

● Elastomer: E,K,N,P,S,V,X

● Metal Part: F,G,M5,S6

RBSIC Seal Rings

SSIC Seal Rings

Tungsten Carbide Seal Rings

Carbon Seal Rings

O-rings

__ _ _ _ __ _ _ _ __ _ _ __ _ _ _ __ __ _ _ __ _ _ _ _ _ _

Encapsulated O-rings / FEP O-rings

Kalrez® O-rings

Chemraz® O-rings

_ _ _ _ _ _ _ __ _ _ _ _ _ _ _ _ _ __ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

Dimension (mm):

d	d3	d6	d7	d8	l1	l3	l8	l9
18	33	27	33	3	61.0	38	19.5	11.5
20	35	29	35	3	61.0	38	19.5	11.5
22	37	31	37	3	61.0	38	19.5	11.5
24	39	33	39	3	61.0	38	19.5	11.5
25	40	34	40	3	61.0	38	19.5	11.5
28	43	37	43	3	62.0	39	19.5	11.5
30	45	39	45	3	62.0	39	19.5	11.5
32	47	42	48	3	62.0	39	19.5	11.5
33	48	42	48	3	62.0	39	19.5	11.5
35	50	44	50	3	62.0	39	19.5	11.5
38	55	49	56	4	69.0	41	22.0	14.0
40	57	51	58	4	70.0	42	22.0	14.0
43	60	54	61	4	70.0	42	22.0	14.0
45	62	56	63	4	70.0	42	22.0	14.0
48	65	59	66	4	70.0	42	22.0	14.0
50	67	62	70	4	73.0	43	23.0	15.0
53	70	65	73	4	73.0	43	23.0	15.0
55	72	67	75	4	73.0	43	23.0	15.0
58	79	70	78	4	86.0	56	23.0	15.0
60	81	72	80	4	86.0	56	23.0	15.0
63	84	75	83	4	85.0	55	23.0	15.0
65	86	77	85	4	85.0	55	23.0	15.0
68	89	81	90	4	91.0	55	26.0	18.0
70	91	83	92	4	92.0	56	26.0	18.0
75	99	88	97	4	92.0	56	26.0	18.0
80	104	95	105	4	92.5	56	26.2	18.2
85	109	100	110	4	92.5	56	26.2	18.2
90	114	105	115	4	92.5	56	26.2	18.2
95	119	110	120	4	90.5	56	25.2	17.2
100	124	115	125	4	90.5	56	25.2	17.2
