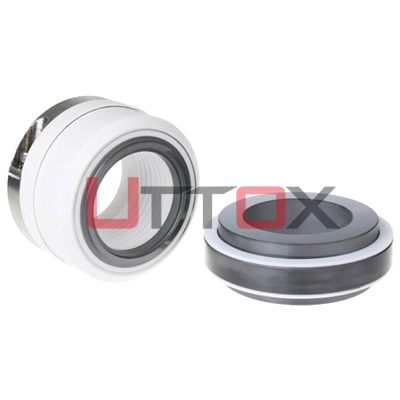

Type: UT-WB2

——————————————————————————————————————————————————————————————————-


·
·
Operating Limits:​​
● Temperature:-20℃ - +180℃

● Pressure：≤ 20bar

● Speed: ≤ 15m/s

● Shaft size: 25mm - 65mm


·
·
·
·
_ _ _ _ _ __ _ _ _ __ _ _ _ _ _ _  _ _ _ _ _ _  _ __ _ _ _ _ _ _ _ _ _ _ _ _ ​
Assembly Dwg:
 __ _ _ _ __ _ _ _ __ _ _ __ _ _ _ __ __ _ _ __ _ _ _ _ _ _
·
Materials:
Springs
RBSIC Seal Rings

● Seal Rings: A,B,Q1/12,Q2/22,

                        U1/12,U2/22

● Elastomer: T
● Metal Part: F
SSIC Seal Rings
Tungsten Carbide Seal Rings
Carbon Seal Rings
O-rings
Encapsulated O-rings / FEP O-rings
 __ _ _ _ __ _ _ _ __ _ _ __ _ _ _ __ __ _ _ __ _ _ _ _ _ _
Kalrez® O-rings
Chemraz® O-rings
_  _  _  _  _ _ _ __ _ _ _ _ _ _ _ _ _ _​_ _ _ _  _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
Dimension (mm):

DD3L1WB2152
D7L13D7L3
25604260274812
30674267275312
35724270275812
40784276276312
45844482276814.5
50884686277314.5
55954690277814.5
601004695278314
6510546100278814
