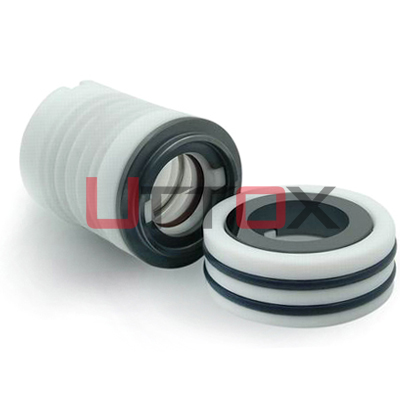

Type: UT-WB3

——————————————————————————————————————————————————————————————————-


·
·
Operating Limits:​​
● Temperature:-20℃ - +180℃

● Pressure：≤ 15bar

● Speed: ≤ 15m/s

● Shaft size: 25mm


·
·
·
·
_ _ _ _ _ __ _ _ _ __ _ _ _ _ _ _  _ _ _ _ _ _  _ __ _ _ _ _ _ _ _ _ _ _ _ _ ​
Materials:

● Seal Rings: A,B,Q1/12,Q2/22,

                        U1/12,U2/22

● Elastomer: T
● Metal Part: F
 __ _ _ _ __ _ _ _ __ _ _ __ _ _ _ __ _ __ _ __ _ __ _ __ _ __ _ __ _ __ _ __ _ __ _ __ _ __ _ __ _ __ __ _ _ __ _ _ _ _ _ _ __ _ __ _ __ _ __ _ __ _ __
·
Springs

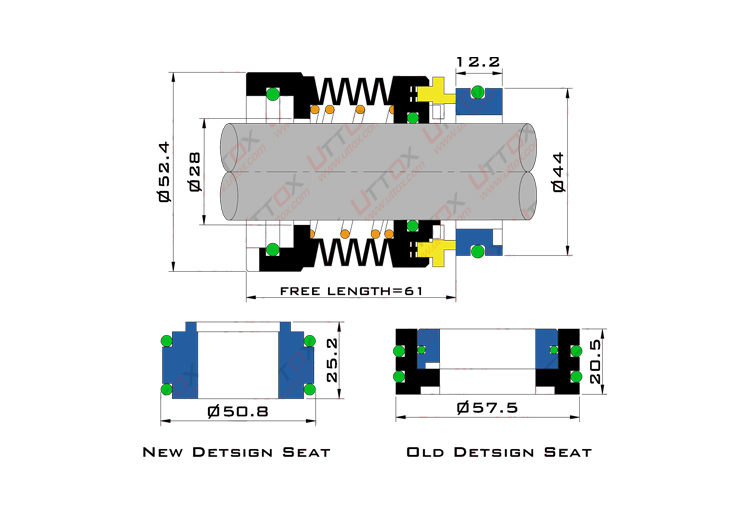

Assembly Dwg & Dimension (mm):
RBSIC Seal Rings
SSIC Seal Rings
Tungsten Carbide Seal Rings
Carbon Seal Rings
O-rings
Encapsulated O-rings / FEP O-rings
Kalrez® O-rings
Chemraz® O-rings
